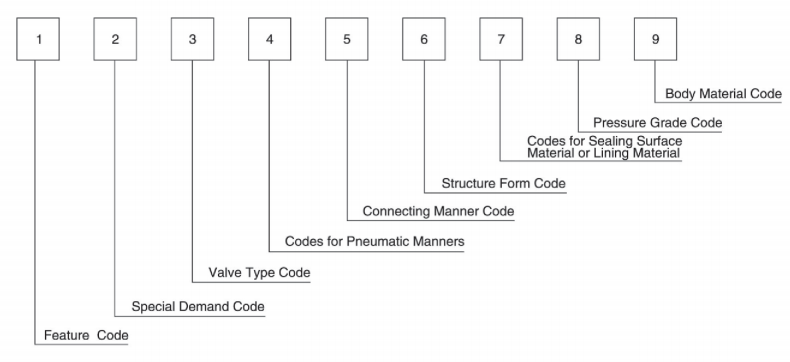

1.Feature Code: The characteristic code of our company is HK
2.Special Demand Code:
K=Anti-sulphur Type, D=Low-temperature Type, B=Heat-insulating Jacketed Type, L=Lengthened Stem Type, Y=Special Type for Oxygen, W=Sanitary Type, V=V Type Ball
3. Valve Type code:
Z=Gate Valve, J=Stop Valve=Ball Valve, D=Butterfly Valve, G=Diaphragm Valve, X=Cock Valve
4. Codes for Pneumatic Manners:
6=Pneumatic, 6S=Pneumatic-Manual, 6K=Pneumatic-Normal Open, 6B=Pneumatic-Normal Close
5. Connecting Manner Code:
1=inside Thread Connection, 2=Outside Thread Connection, 4=Flanged Connection, 6=Welding, 7=Wafer Connection, 8=Buckle Connection.
6. Structure Form Code:
Gate Valve: 1=Wedge Single Flashboard, 2=Wedge Double Flashboard Elastic Flashboard, 3-Paralleled Single Flashboard, 4=Paralleled Double Flashboard
Stop Vale: 1=Floating Straight-through Type, 4=Angle Type, 5=Straight-flow
Ball Valve: 1=Floating Straight-through Type, 4=Floating Type L-shaped Three-way, 5=Floating Type T-shaped Three-way, 7=Fixed Typed Straight-through Type, 8= Typed T-shaped Three-way, 9=Fixed Type L-shaped Three-way, 0=Hemisphere through
Butterfly valve: 1=Center-line Straight-plate Typed, 3=3-D Eccentric Type 3-D
Diaphragm valve: 1=Ridge Typed, 3=Stop Valve
Cock Valve: 3=Staight-through Type, 4=T-shaped Three-way Type, 5=Four-way Type
7. Codes for Sealing Surface Material or Lining Material:
F=Polytetrafluoroethylene, P=Para-Position polyphenylene, N=nylon=Rubber, NBR Buna-N Rubber -12~82, H=Alloy Steel, Y=Hard Alloy, J=Rubber-lined, F4=polytetrafluoroethylene-lined.
8. Pressure Grade Code:
The expression for the decuple(KGF/cm’)of nominal pressure Mpa of GB Standard includes 6.0, 10,16,25,40,64,100.
9、 Body Material Code
C=WCB: P=CFB(304)00Cr18Ni10, (321)1Cr18N9Ti, PL=CF3(304L)O0Cr18Ni10, R=CFBM(316)OCrNi1202, RL=CF3M(316L)00Cr17Ni14Mo2;=WC6, 1Cr5Mo, F=LCB, N=LCS3, =PVC, RPP (No detalied particularization for the corresponding forge materials)
Note: For carbon cast steel valve body of PN2.5MPa and over Class 150 in pressure grade, thes code is omitted
Example 1: HKQ641F-16P-DN50 Representing full-bord floating stainless steel ball valve connected by pneumatic flange with a nominal pressure of 1.6MPa and adiameter of DN50mm.
Example 2: HKD6S73H-150-4″ Representing wafer-type metal sealed tri-eccentricity simple steel butterfly valve with a pressure grade at class 150 and and a diameter
