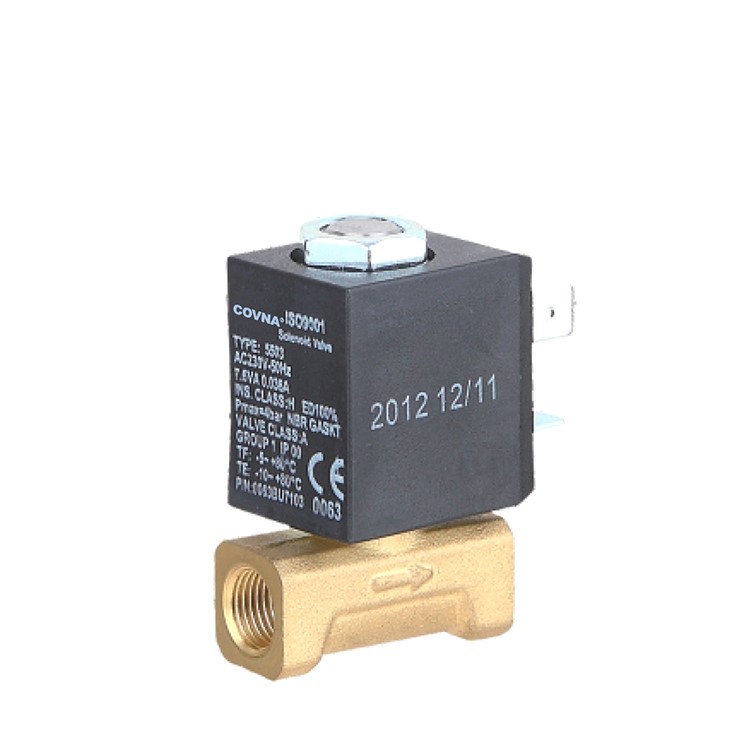

COVNA 2 Way Brass Household Appliance Small Solenoid Valve
COVNA 5503 direct acting small household solenoid valve with brass body material, NBR, VITON, EPDM soft seal, working pressure range from 0.0MPa~2.0MPa. Thread connection end, port size 1/8”; Working voltage: DC-12V 24VAC-24V . 120V 240V / 60HZ : 110V . 220V / 50HZ; Tolerance:±10%; Material: Body-brass, Seal-VITON PTFE NBR EPDM, Armature Tube- Stainless Steel304, Plunger- Stainless Steel 430F, Stop-ss 403F, Springs-ss 304, Shading Rings-stainless Steel 304
- Model: 5503
- Size Range: 1/8'' and other
- Pressure Range: 0.0MPa-2.0 MPa
- Material: Brass
DCOVNA Normally Closed Small Solenoid Valve
1. Direct acting miniature construction at lowpower consumption
2. With TUV certificate for household appliance uselike coffee machine. electrical iron. steam clearnel
3. Applied to low pressure system, open from 0 bar
| Port Size | 1/8” and other, pls refer to instructions | Oriflice | 1.0, 1.2, 1.6, 2.0, 2.6, 2.8 |
| Port Connection | BSPP,BSPT, NPT | Function | Normally closed |
| Pressure | 0.00MPa-2.0MPa | Voltage | DC-12V, 24V, 36V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz |
| Temperature of media | Viton seal: -10℃-150℃ | Suitable Media | Stem, hot water, oil, air |
| Material | Brass | Sealing Material | VITON |
| Coils | SA11B : 9VA ( AC ) 8W ( DC ) , IP65 , 100 % ED | ||
