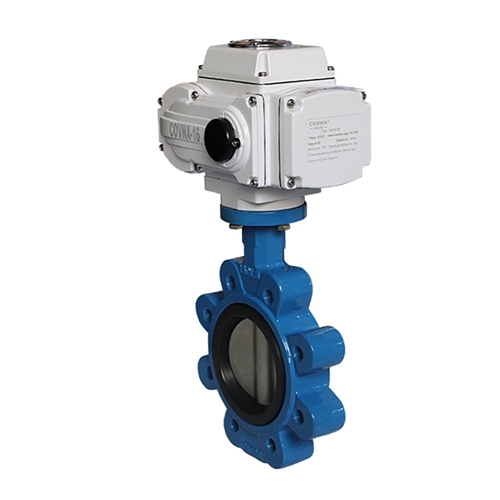

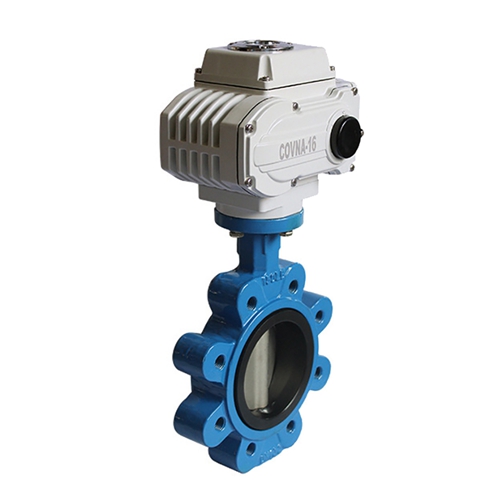

COVNA Cast Iron HK60D-M Electric Actuated Lug Type Butterfly Valve
COVNA HK60-D-M Electric Actuated Lug Type Butterfly Valve, standard on/off control, 4-20mA or 0-10VDC modulating control is available, cast iron or ductile iron body construction, optional 304 or 316 stainless steel, 220VAC standard voltage, minimum 2 inch lug connection, default NBR seat, suitable for most air, water, light oil, fuels, solvents, alcohol and many acids, EPDM or VITON is optional.
Widely used for different applications such as HVAC, water treatment and so on for flow control.
- Model: HK60D-M
- Size Range: 2" to 25"
- Pressure Range: MAX 1.6MPa
- Material: Cast Steel, Cast Iron, Ductile Iron, Stainless Steel
COVNA Cast Iron Motorized Lug Type Cast Iron Butterfly Valve
- Features: Large Size Range, Energy Conservation, Long Service Life, etc
- Lower torque requirement: 50N.m or 4000N.m
- Rotation: Quarter-turn
- Actuator Type: ON OFF Type, Regulating Type and Intelligent Type
- Excellent flow control in quarter turn operation
- 100% tight Bidirectional shut off
- Steam lined valve disc ensures lower pressure drop
- Easy automation/Retrofit possible
- Wide range of body, disc, seat material options
- Connection: Wafer, Lug, Tri Clamp and Flange end
| Normal Size Range | 2″, 2.5″, 3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 22″, 24″ | End Connection | Lugged |
| Core Materal | Stainless Steel 304/316/316L | Working Pressure | <16 bar (232 psi) |
| Body Material | Cast Iron | Suitable Media | Water, Air, Oil, Gas, etc |
| Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V | Temperature Of Media | -10 to 180℃ (14℉ to 356℉) |
| Voltage Tolerance | ±10% | Structure | Midline structure A type |
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistant, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65; Explosion Proof Construption Are Available: EX d II BT4 |
| Series | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A |
| Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W |
| Mounting Standard | ISO5211 direct mounting | |||||||
| Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | |||||||
| Input Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Output Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Protection Class | IP65 protection class | |||||||
| Ambient Temp | -20 to +60°C | |||||||
| Wiring Diagram | A: ON/OFF type with light indicator signal feedback | |||||||
| B: ON/OFF type with passive contact signal feedback | ||||||||
| C: ON/OFF type with resisance potentiometer signal feedback | ||||||||
| D: ON/OFF type with resistance potentiometer and neutral posistion signal feedback | ||||||||
| E: Regulation type with servo control module | ||||||||
| F: DC24/DC12V direct ON/OFF type | ||||||||
| G: AC380V 3-phase power supply with passive signal feedback | ||||||||
| H: AC380V 3-phase power supply with resistance potentiometer and neutral posistion signal feedback | ||||||||
