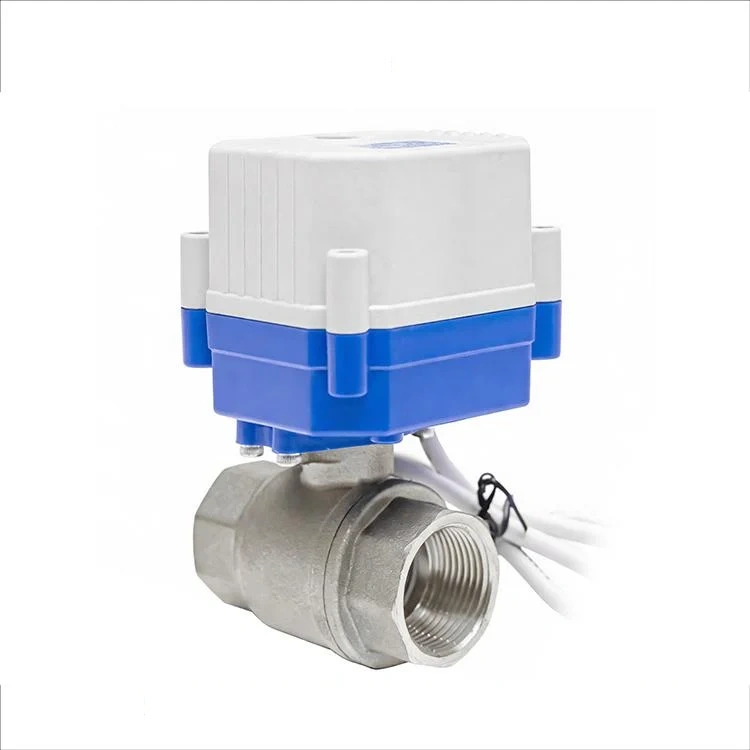

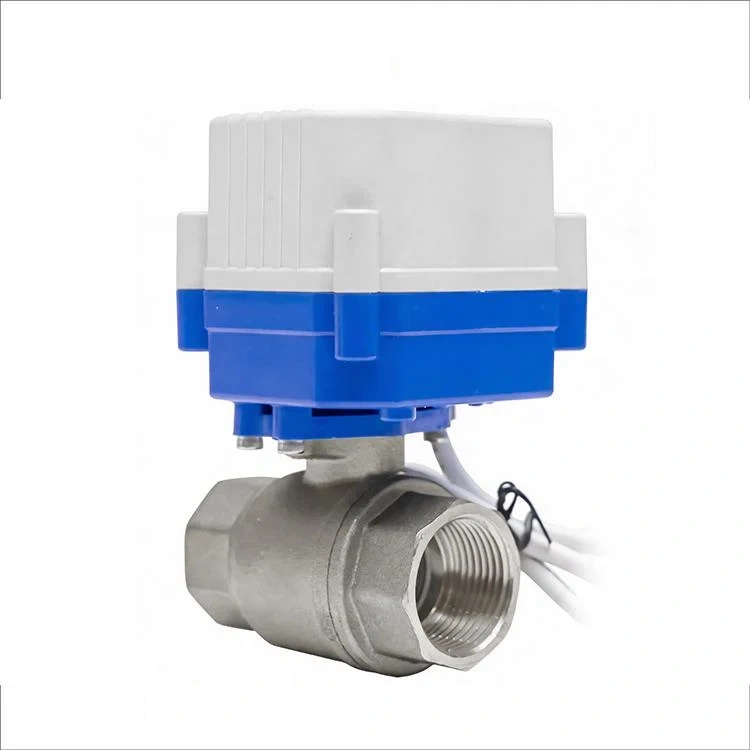

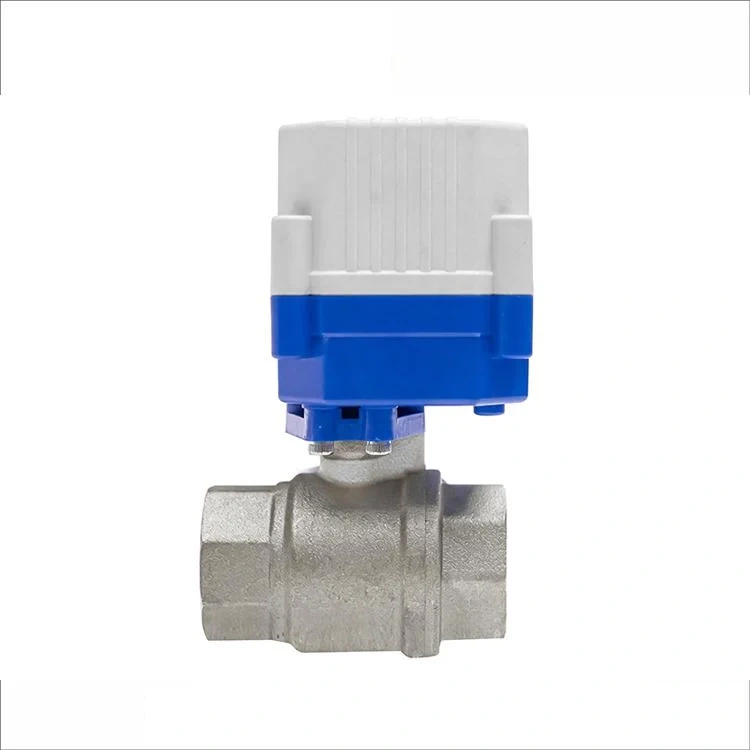

COVNA CWX-15Q 5V DN15 SS304 Electric Ball Valve for Water
COVNA Miniature Timer Control Motorized Ball Valve with brass and stainless steel material, gray and black color. Working voltage: AC110V~230V, DC9~24V, size range from 1/2”~2”; Zero leakage and good sealing performance. User friendly ON/OFF timer control. OEM branding available. It has been successfully applied in many industrial fields, such as air conditioning system, fire fighting system, water treatment system, pipeline purging, analytical instruments, flue gas sampling and other industries
- Model: HK65-S
- Size Range: 1/2" to 3/4"
- Pressure Range: 0~1.0MPa
- Material: Stainless steel, Brass
COVNA CWX-15n Mini Motorized Ball Valve
- All-copper gear design, high accuracy output torque, especially for multi-channel scaling system
- Small size, compact structure, easy to set time control
- A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing
- Good sealing performance. IP67 protection class
- Leakage: Zero leakage, Return difference: ±2.5%
|
Model
|
HK65-S
|
Voltage
|
AC110V~230V, DC9~24V |
|
MOQ
|
1 Set
|
Working current
|
≤80mA
|
|
Open/Close time
|
≤7s |
No. of Ways
|
2 Way
|
|
Torque output
|
2.0N.M
|
End Connection
|
BSP Thread
|
|
Life time
|
100,000 times
|
Medium
|
Water, Air
|
|
Body Material
|
Brass, ss304, ss316(optional)
|
Temp. of Media
|
2°C to 90°C
|
|
Valve Ball
|
PVC, UPVC, Brass, Stainless Steel(Optional)
|
Certification
|
ISO 9001, CE, TUV, SGS
|
|
Sealing Material
|
SEPDM
|
Indicator
|
Yes
|
|
Keeping Valve Open Time
|
0H:0M:OS-99H:59M:59S
|
Manual override
|
NO
|
|
Actuator material
|
Engineering Plastics
|
Ambient temperature
|
-15°C to 50°C
|
