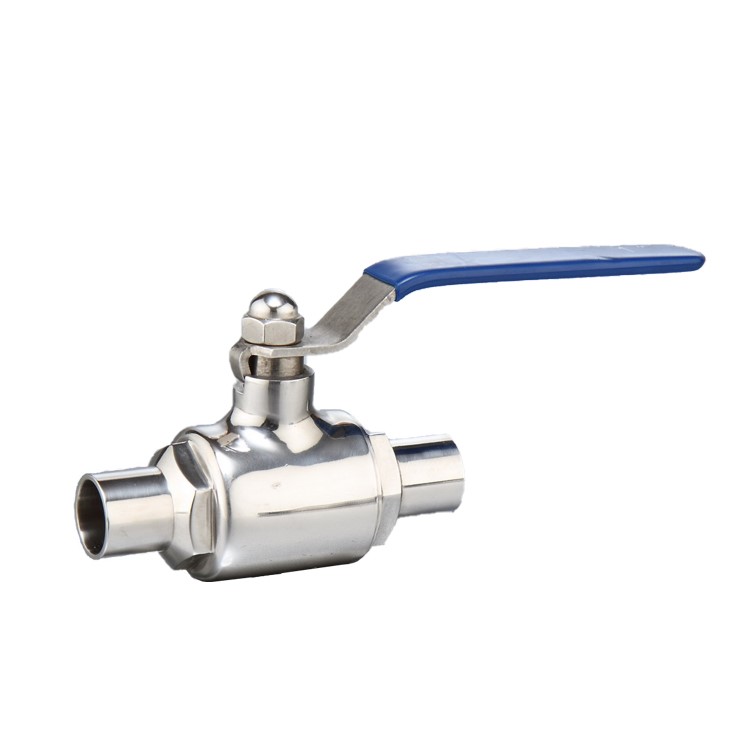

COVNA FG2W 2 Way Tri Clamp Food Grade Ball Valve
Food grade ball valve suitable for milk, soft drink, water and so on.
COVNA as a sanitary ball valve manufacturer, we provide ball valve in 2 way and 3 way valve for on/off control of water, oil, gas, drink, etc for your projects.
Sanitary ball valve can be equipped with electric actuator or pneumatic actuator to realize automatic operation.
Contact US to get more various types.
- Model: Food Grade Ball Valve
- Size Range: DN15~DN100, 1/2inch~4inch
- Pressure Range: 10bar, 16bar, 25bar, 40bar, 64bar
- Material: Stainless Steel 304 or Stainless Steel 316
2 Way Food Grade Ball Valve Features:
● Available in 2 way and 3 Way
● Tri-clamp connection offers food grade solution for food and beverage industry
● ISO5211 mounting for electric actuator and pneumatic actuator
Technical Parameters:
● Material: Stainless Steel
● Pressure: 10bar, 16bar, 25bar, 40bar, 64bar (145psi, 232psi, 362psi, 580psi, 928psi)
●Temperature: PTFE: -10℃ to 180℃ (14℉ to 356℉)
● Connection: Tri clamp
● Suitable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid, etc
