COVNA FG3W 3 Way Tri Clamp Sanitary Ball Valve
Food grade ball valve suitable for milk, soft drink, water and so on.

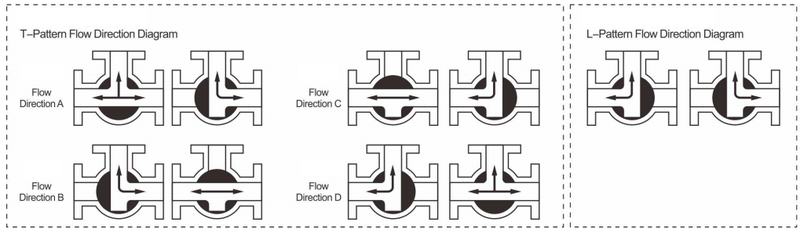

2 Type flow direction diagram for choice: T type and L type.
COVNA as a valve manufacturer, we provide ball valve in 2 way and 3 way valve for on/off control of water, oil, gas, drink, etc for your projects.
- Model: Flange Ball Valve
- Size Range: DN15~DN100, 1/2inch~4inch
- Pressure Range: 10bar, 16bar, 25bar, 40bar, 64bar
- Material: Stainless Steel 304 or Stainless Steel 316
3 Way Sanitary Ball Valve Features:
● Available in T port and L port
● Tri-clamp connection offers food grade solution for food and beverage industry
● ISO5211 mounting for electric actuator and pneumatic actuator
Technical Parameters:
● Material: Stainless Steel
● Pressure: 10bar, 16bar, 25bar, 40bar, 64bar (145psi, 232psi, 362psi, 580psi, 928psi)
●Temperature: PTFE: -10℃ to 180℃ (14℉ to 356℉)
● Connection: Tri clamp
● Suitable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid, etc
