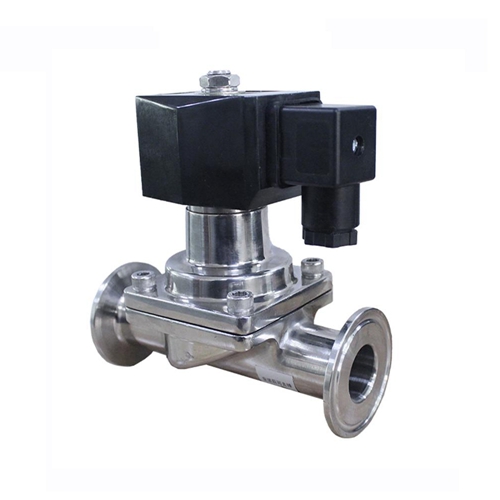

1.COVNA HK0018 Series Tri Clamp Food Grade Sanitary Solenoid Valve
COVNA HK0018 solenoid valve, stainless steel body construction, 2/2 way, 24VDC, minimum 3/8 inch tri-clamp connection, normally closed operation. Default NBR seat, suitable for most air, water, light oil, fuels, solvents, alcohol and many acids, EPDM or PTFE seat is optional.
- Model: HK0018
- Size Range: 3/8" to 2"
- Pressure Range: 0 to 1.6MPa
- Material: Stainless Steel
COVNA Tri Clamp Food Grade Sanitary Solenoid Valve
● Features: Compact Designs;Bidrectional Flow;Up to 80°C ambient temperature(-5℃~80℃)
● Function: Normally Closed/Normally Open
● FDA wetted materials compatible with aggressive cleaning fluids.
Bidirectional flow
● Pressure: 0 to 10 bar
● Exceptional reliability – 50 million switching cycles
● Connection Type: Tri Clamp
● Voltage: 12 Volt DC, 24 Volt DC, 24 Volt AC, 110 Volt AC, 220 Volt AC
● Tolerance: ±10%
● Suitable Medium: Milk, Soft Drink, Water, etc
– DATA SHEET –
| Model | HK0018A | Switch Function | NC / NO |
| MOQ | 1 Set | Certification | ISO 9001, CE, TUV, SGS |
| Port Size | 3/8" to 2" | End Connection | Tri Clamp |
| Operating Pressure | 0 to 1.6MPa | Media | Water, Oil, Air, Gas etc. |
| Body Material: | SS304/ SS316 | Working Temperature | -10~80℃ |
| Sealing Material | NBR / PTFE / EPDM | Warranty | 1 Year (12 Months) |
– DESCRIPTION –
COVNA HK0018 Tri Clamp Food Grade Solenoid Valve adopts quick connection approach, to avoid direct contact with the media, can keep food media hygienic and safety. Widely used for food industry.
COVNA food grade water solenoid valve catalog is provided, click download button above to gain the dimension of sanitary solenoid valve.
