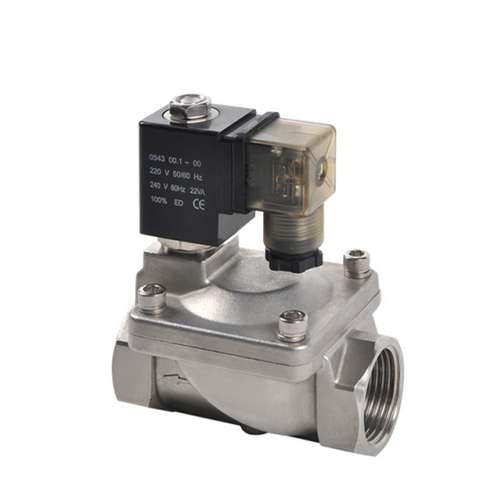

COVNA HK07 Series Pilot Operated Diaphragm Solenoid Valve
COVNA HK07 solenoid valve, brass or stainless steel body construction, 2/2 way, 24VDC, minimum 1/2 inch female thread connection, normally closed operation. Default NBR seat, suitable for most air, water, light oil, fuels, solvents, alcohol and many acids, NBR, EPDM seat is optional.
- Model: HK07
- Size Range: 1/2" to 2"
- Pressure Range: 0.03 to 1.0MPa
- Material: Brass, Stainless Steel
COVNA Brass or Stainless Steel Pilot Operated Diaphragm Solenoid Valve
● Features: Pilot operated diaphragm construction with less power consumption for longtime working
● Structure: Pilot Operated Piston
● Function: Normally Closed/Normally Open
● Easy of Installation & Cost Reduction
● Applied to pressure system opened from 0.3 bar
● Temperature: High Temperature(-10℃~350℃)
● Connection Type: Threaded, Flange End
● Lifespan can be at 1 million cycles.
● Tolerance: ±10%
● Suitable Medium: Hot Water, ThermalOil, Steam etc
– DATA SHEET –
| Model | HK07 | Switch Function | NC / NO |
| End Connection | Thread / Flange | Certification | ISO 9001, CE, TUV, SGS |
| Port Size | 1/4" to 2" | MOQ | 1 Set |
| Operating Pressure | 0.03 to 1.6MPa | Media | Water, Oil, Air, Gas etc. |
| Body Material: | Stainless Steel,Brass | Working Temperature | -10~80℃ |
| Sealing Material | NBR, EPDM | Warranty | 1 Year (12 Months) |
– DESCRIPTION –
COVNA HK07 Pilot Operated Diaphragm Solenoid valve with less power consumption for longtime working. Applied to pressure system opened from 0.3 bar. Max pressure is 16 bar. Longtime working. Support Brass or Stainless steel body material.
In the case of a pilot operated solenoid valve, it uses system air pressure as a pilot to actuate the spool. For many OEM’s that are still using direct acting solenoid valves in their pneumatic manifolds, it might be worthwhile to consider moving to pilot actuated valves to ease installation, reduce footprint, save money, and allow fieldbus communication.
COVNA norgren pilot operated solenoid valve catalog is provided, click download button above to gain pilot operated 2 port solenoid valve installation & force pilot operated solenoid valves dimensions, and pilot operated solenoid valve symbol & pilot operated solenoid valve working principle.
