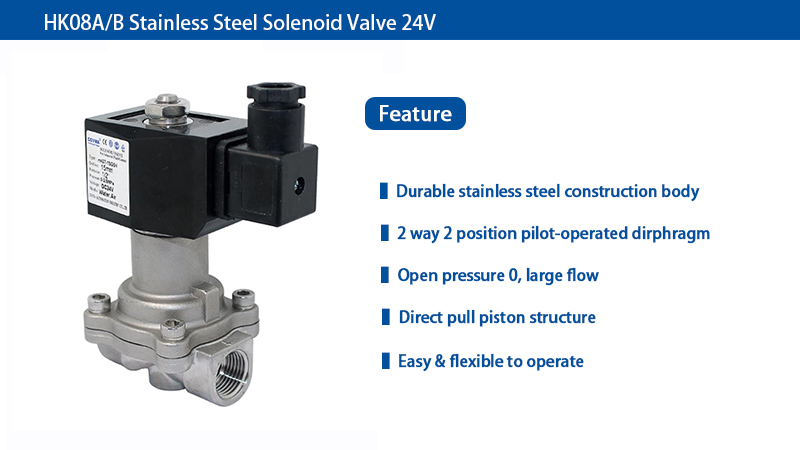

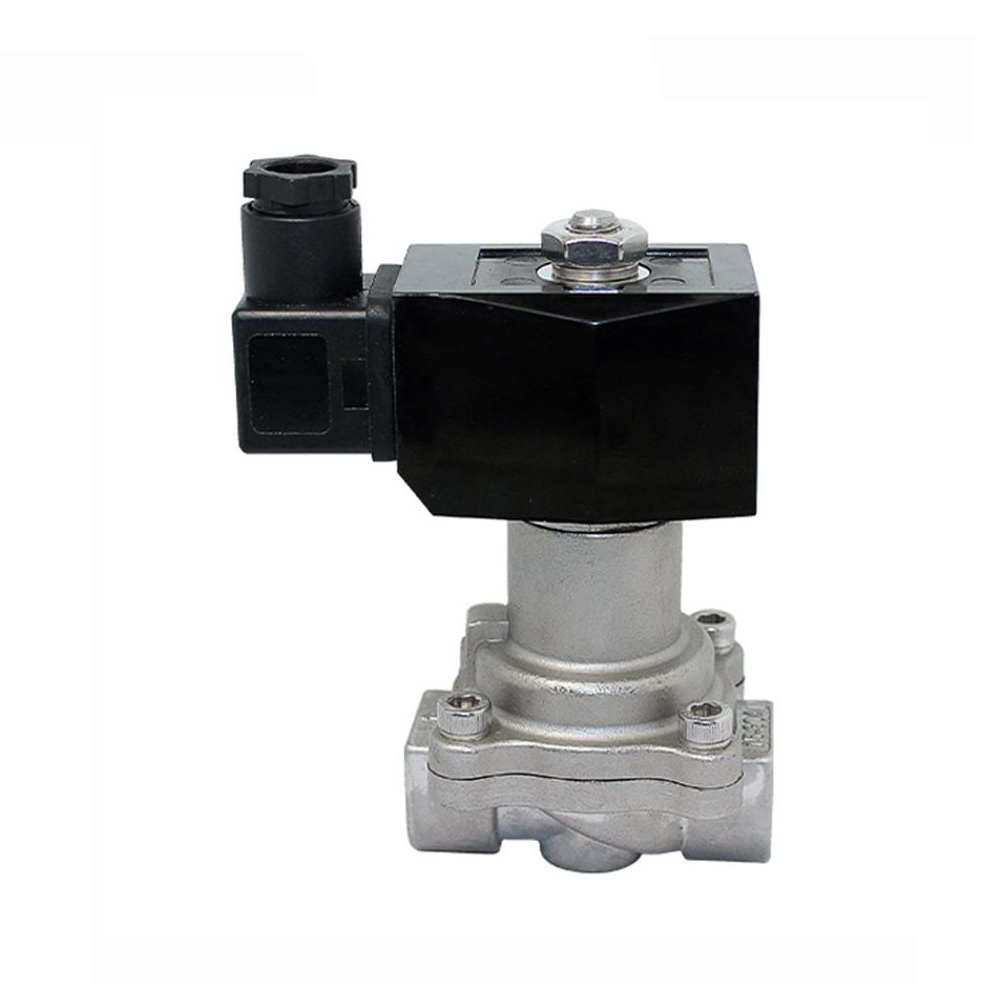

COVNA HK08 Stainless Steel Electric Diaphragm Solenoid Ball Valve
SS Solenoid Valve 24v/ 12v with ISO/CE/TUV/FDA certificates. Quality assurance and/or conformity managed in accordance with standards. OEM/ODM services are available.
electric solenoid valve is constructed with a high-quality stainless steel body, three-quarter inch (3/4″) female threaded (NPT) connections, and Viton gasket.
Suitable for use with hot or cold water, gas, air, oils, very low viscosity fluids (< 20 cst) and gasoline or other petroleum based liquids.
- Model: HK08
- Size Range: 1/2''~2''
- Pressure Range: 0.03MPa-1.0 MPa
- Material: Stainless Steel
| Port Size | 1/2″, 3/4″, 1″, 1¼”, 1½”, 2″ | Orifice(mm) | 10,15, 20, 25, 32, 40, 50 |
| Port Thread | BSPP, BSPT, NPT, FLANGE | Function | Normally closed or opened |
| Pressure | 0.03MPa-1.0 MPa, 0.03MPa-2.5 MPa | Voltage | DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz |
| Temperature of media | -10~180℃ ;-10~220℃ | Suitable Media | Stem, hot water, civil gas, oil. |
| Material | Stainless steel | Sealing Material | PTFE, VITON |
- China Solid valve- industrial grade products
- 3/4″ Stainless Steel pilot-operated diapnragm with Viton gasket
- Versatile, small, responsive, light and durable
- High quality replacement part for use with pipelines in water, air and diesel applications
- Suitable Media: Air, water, oil, natural gas, gasoline, diesel fuel, kerosene, etc. Can not be used in strong acid, strong base, waste water, industrial gas and other media containing many impurities
COVNA group valves factories located in Ningbo city, Wenzhou city in China is a famous and trustworthy automatic valves suppliers.
