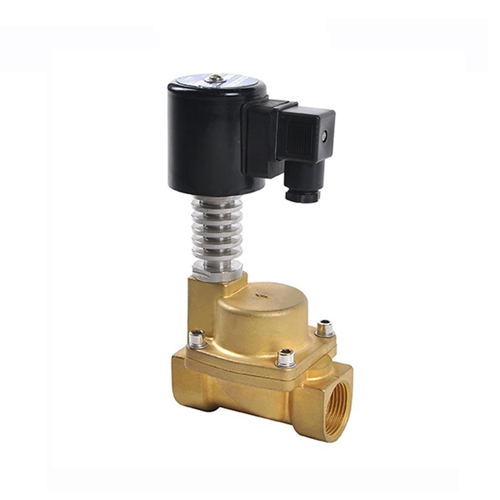

COVNA HK10 Series Stianless Steel High Temperature Solenoid Valve
COVNA HK10 high temperature solenoid valve, brass or stainless steel body construction, 2/2 way, 24VDC, minimum 1/4 inch female thread connection, normally closed operation. Default PTFE seat, resistant to almost all fluids. Suitable for higher operating pressures and temperatures.
- Model: HK10
- Size Range: 1/4" to 2"
- Pressure Range: 0.05 to 1.6MPa
- Material: Brass, Stainless Steel
COVNA Stianless Steel High Temperature Solenoid Valve For Thermal Oil
● Features: High Temperature, Fast Acting, Longtime Working, etc
● Structure: Pilot Operated Piston
● Function: Normally Closed
● Material: Stainless Steel or Brass
● Pressure: 0.5 to 16 bar
● Temperature: High Temperature(-10℃~350℃)
● Connection Type: Threaded, Flange
● Voltage: 12 Volt DC, 24 Volt DC, 24 Volt AC, 110 Volt AC, 220 Volt AC
● Tolerance: ±10%
● Suitable Medium: Hot Water, ThermalOil, Steam etc
– DATA SHEET –
| Model | HK10 | Switch Function | Normally Closed (NC) |
| Port Thread | BSPP, BSPT, NPT, Flange | Certification | ISO 9001, CE, TUV, SGS |
| Port Size | 1/4" to 2" | End Connection | Female Thread |
| Operating Pressure | 0.05 to 1.6MPa | Media | Water, Oil, Air, Gas etc. |
| Body Material: | Stainless Steel,Brass | Working Temperature | -10-300℃ |
| Sealing Material | PTFE | Warranty | 1 Year (12 Months) |
– DESCRIPTION –
HK10 Stainless Steel High Temperature Solenoid Valve suitable for thermal oil, hot water, steam etc.. Seal serves longtime at steam ambient. Used for long-time working in pipeline system. Max. temperature 300℃ (572℉)
