COVNA HK1071B DN25 2 Piece Femal Thread Brass Ball Valve
1piece & 2 piece & 3 piece, full port & standard port, npt thread & tri clamp type. Kinds of ball valves are available in COVNA. COVNA stainless steel ball valves are fitted with tight seals to ensure no leakage and a long lasting seal after many years of frequent usage.
Ball valve in the pipeline is mainly used to do cutting, distribution and change the direction of flow of media
Widely used in shipyard, water treatment, irrigations, food and beverage, etc.
Contact US to get more info!
- Model: HK1071B
- Size Range: 1/4''~4''
- Pressure Range: PN1.6, 2.5, 4.0, 6.4 MPa
- Material: Brass, Stainless Steel 304 or Stainless Steel 316
2 Way 2PC Ball Valve Features:
- NPT and G threaded are available for different pipeline standard
- Low cost. Offering cost-effective solution for your applications
- Suitable for most mediums like water, oil, air, gas and other mediums
- Lead-free brass is available
- ISO5211 mounting for electric actuator and pneumatic actuator

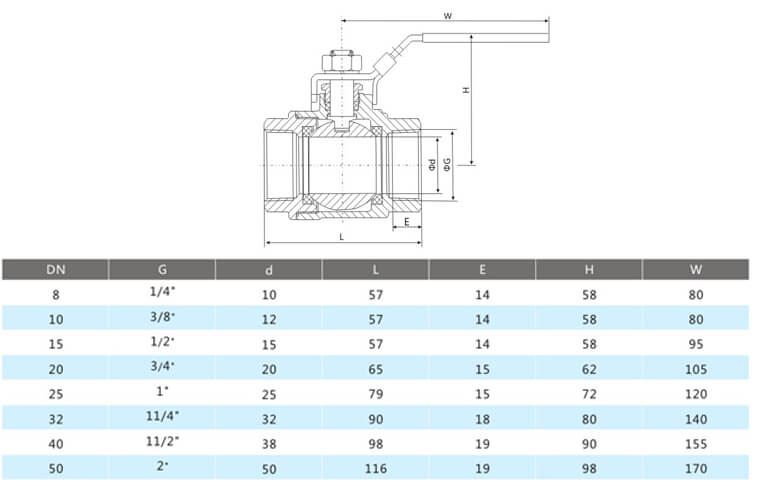

Technical Parameters:
● Size Range: DN8-DN80 (1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″)
● Material: Brass, Stainless Steel 304 or Stainless Steel 316
● General Pressure: PN1.6, 2.5, 4.0, 6.4 MPa (Higher pressure requirement, please contact us)
● Temperature: -10~180℃ (-10°F to 356°F)
● Suitable Medium: Water, Oil, Gas, etc
● Widely used in water treatment, shipyard, boiler, food and beverage, oil and gas industry and other applications
