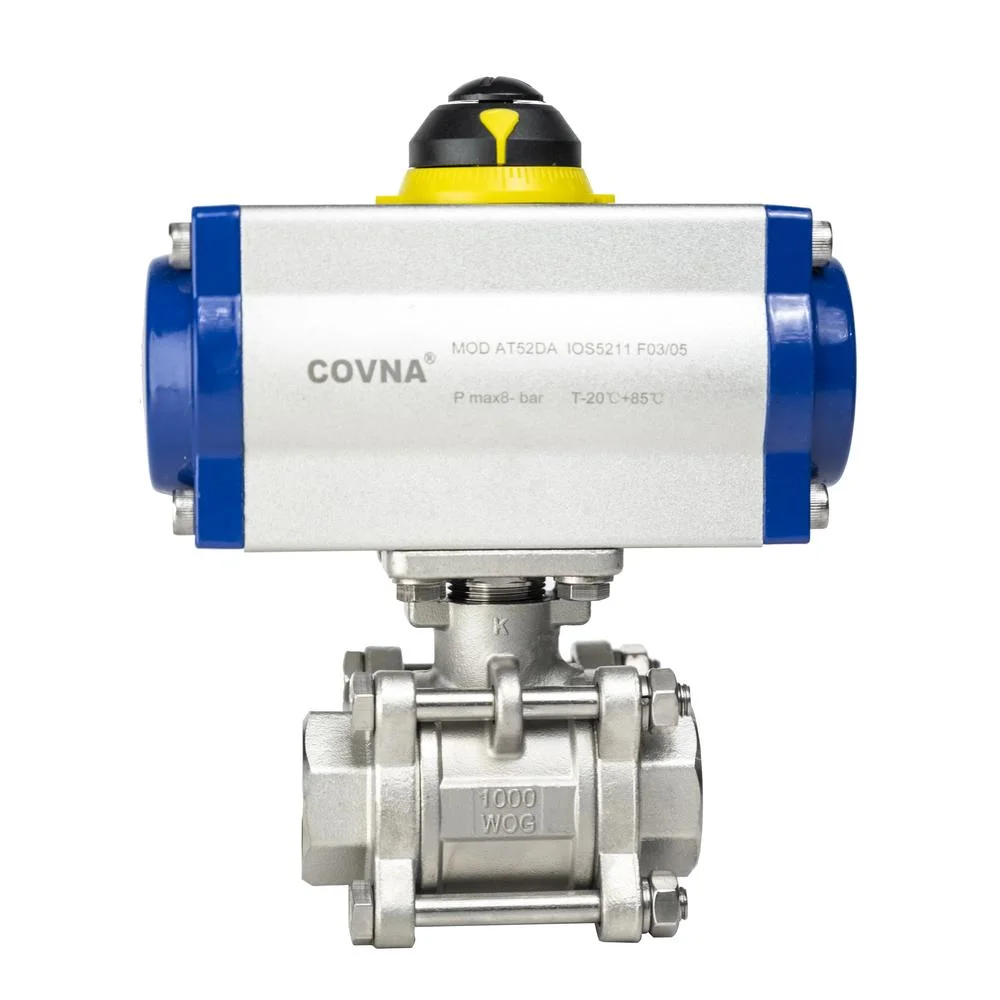

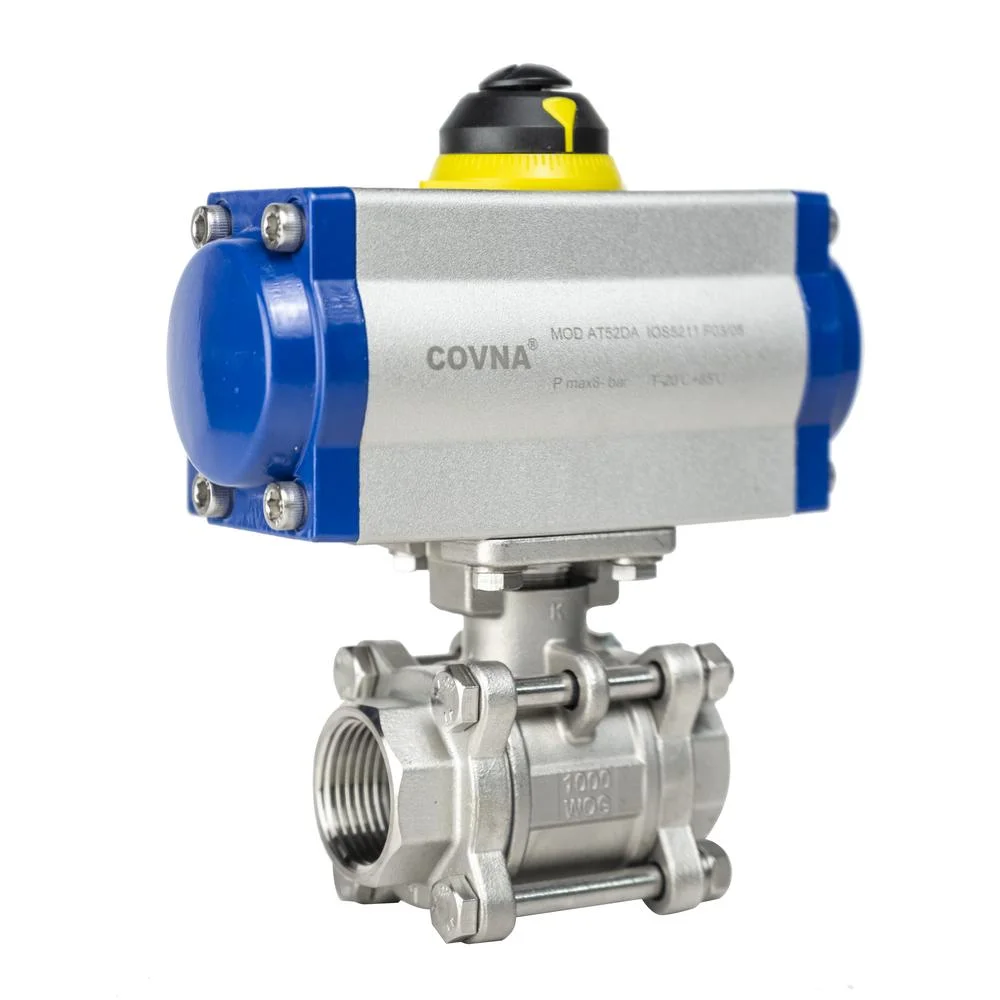

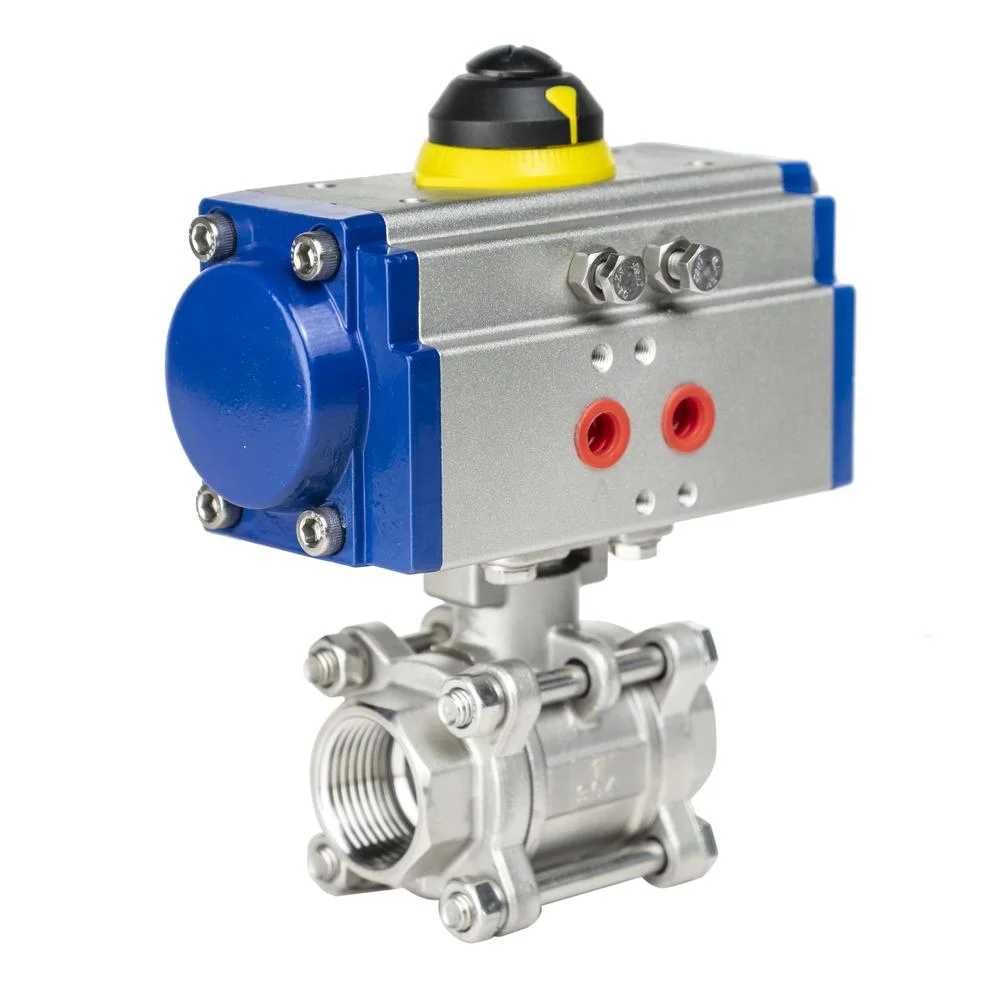

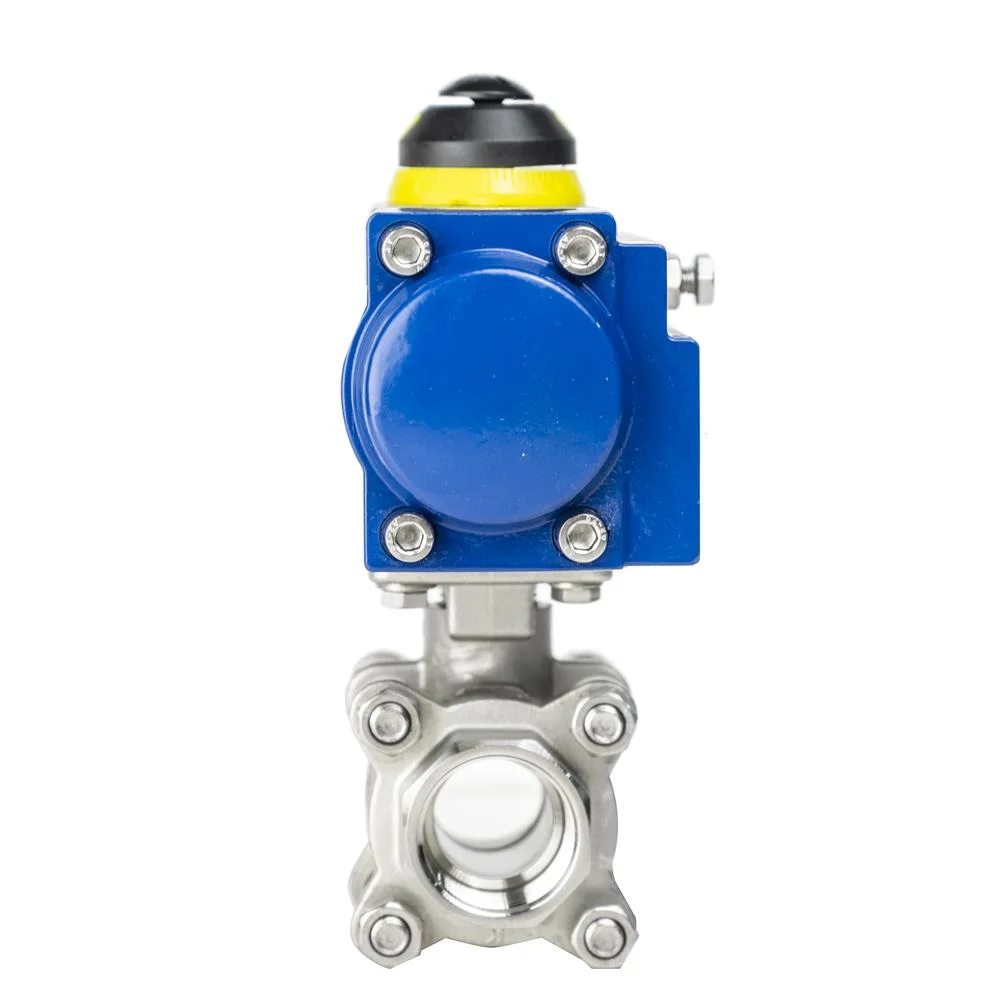

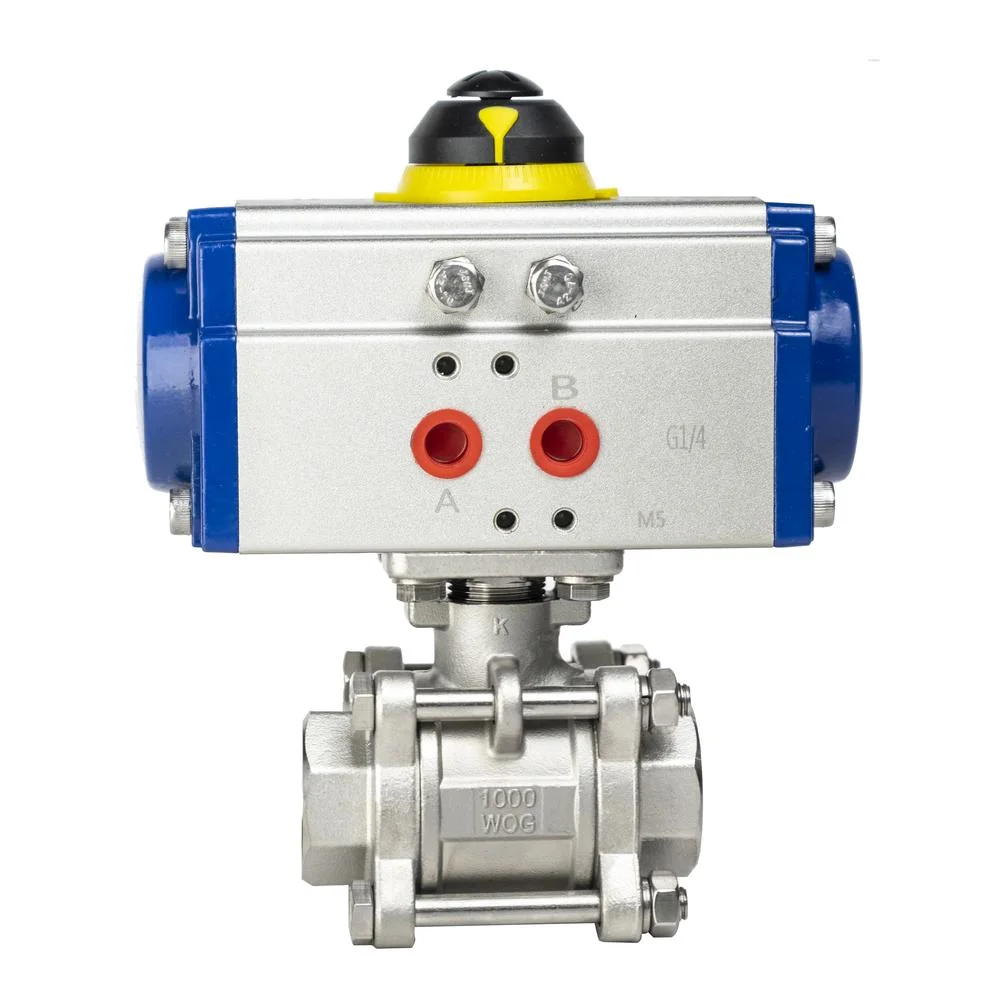

1.COVNA HK56-3PS Series Pneumatic Actuator Thread Ball Valve
COVNA HK56-3PS Pneumatic thread ball valve, double acting standard control mode, single acting is available, 304 or 316 stainless steel body construction, 2.5 to 8bar input air pressure, minimum 1/4 inch female thread connection, default PTFE seat, resistant to almost all fluids. Suitable for the higher operating pressures and temperatures. application.
- Model: HK56-3PS
- Size Range: 1/4" to 4"
- Pressure Range: 1.0 to 6.4MPa
- Material: Stainless Steel 304, 316
COVNA 3PS Stainless Steel Pneumatic Thread Ball Valve
- Available In Spring Return(Single Acting) And Double Acting Pneumatic Actuator.
- High Torque Up To 4678Nm.
- 3-Piece Ball Valve Design. Easy To Maintain And Extend Service Life.
- NPT Thread and G Thread are Available.
- Connection Type: Thread(Male & Female) ,Tri Clamp and Welding.
- Wide Application Range.
– DATA SHEET –
| Model | HK56-3PS | Acting Model | Double Acting/Spring Return |
| Air Supply Pressure | 2.5 to 8 Bar | Certification | ISO 9001, CE, TUV, SGS |
| Applicable Standard | GB | No. Of Ways | 2 Way |
| Port Size | 1/4"-4" | End Connection | BSP/G Thread |
| Operating Pressure | 1000 WOG | Media | Water, Oil, Air, Gas etc. |
| Body Material: | Stainless Steel 304/316 | Working Temperature | -10°C to 180°C |
| Sealing Material | PTFE | Warranty | 1 Year (12 Months) |
– DESCRIPTION –
COVNA Pneumatic Ball Valve with CF8M stainless steel,1/2″ BSP thread, 15mm bore, PTFE seat, F03/F04 ISO mounting pad. Vacuum to 68 bar pressure range, media temp -20°C to 180°C. Live loaded packing.
Typical applications include water treatment, chemical, marine, petrochemical and general industry. Which with strong sealing performance and million lifetime,easy to disassemble and clean, improve the reuse rate, extend the working life.COVNA HK56-3PS Series Pneumatic 3PC Ball Valve Specification
