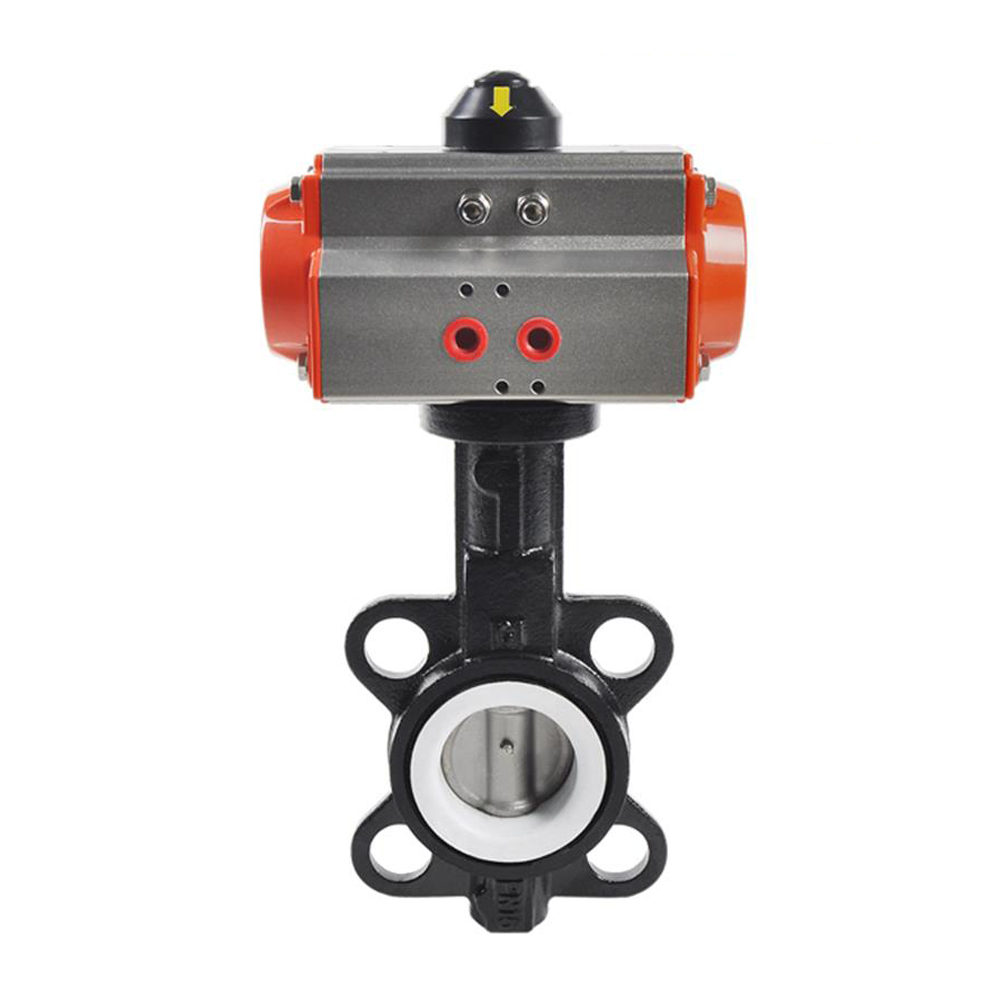

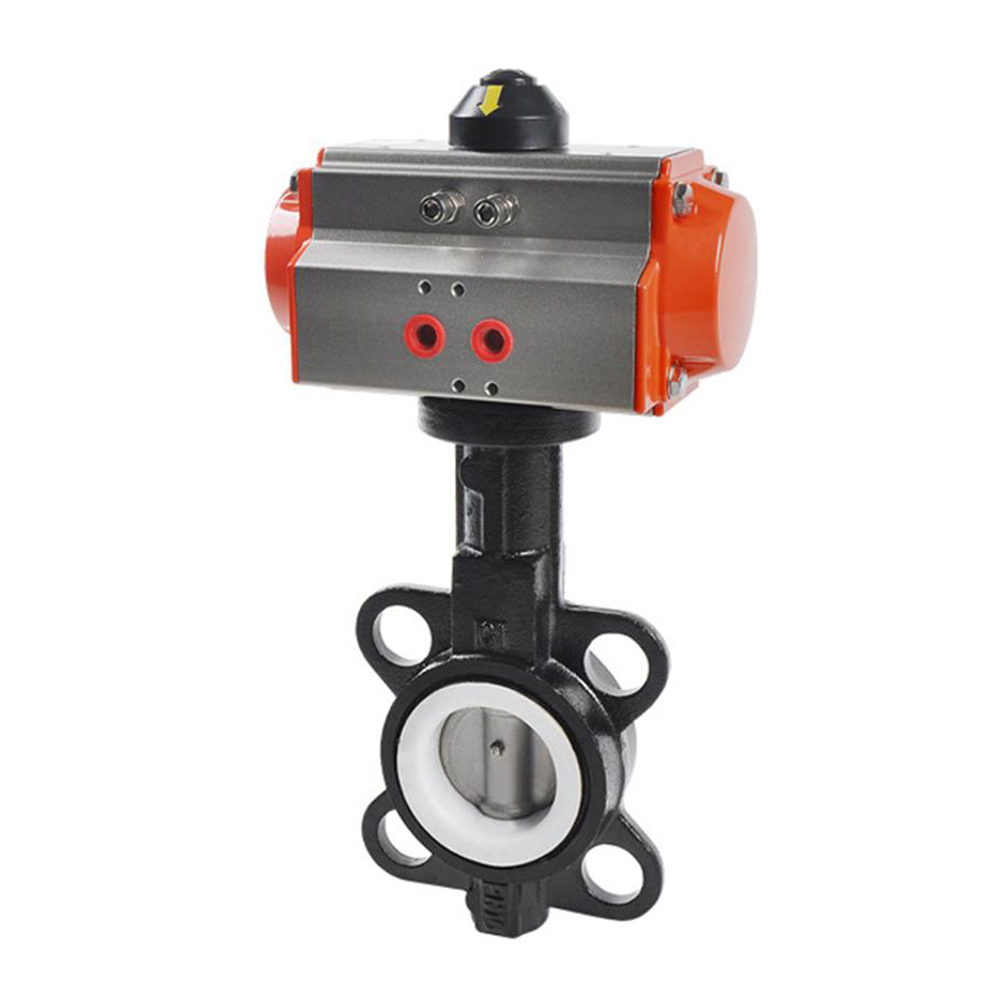

COVNA HK59-D Cast Iron Pneumatic Operated Butterfly Valve
The HK59-D series has a cast iron body, 316 SS disc, EPDM or PTFE seat and a double acting pneumatic actuator making it suited to a wide range of industrial applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality double acting (rack and pionion design) anodised aluminium pneumatic actuator. The unique bonded catridge design of the butterfly valve gives it a longer life span, allows vacuum to be run through it and enables the seat to be replaceable if ever the need should arise.
- Model: HK59-D
- Size Range: 2''~16''
- Pressure Range: 1.0MPa to 1.6MPa
- Material: Cast Iron

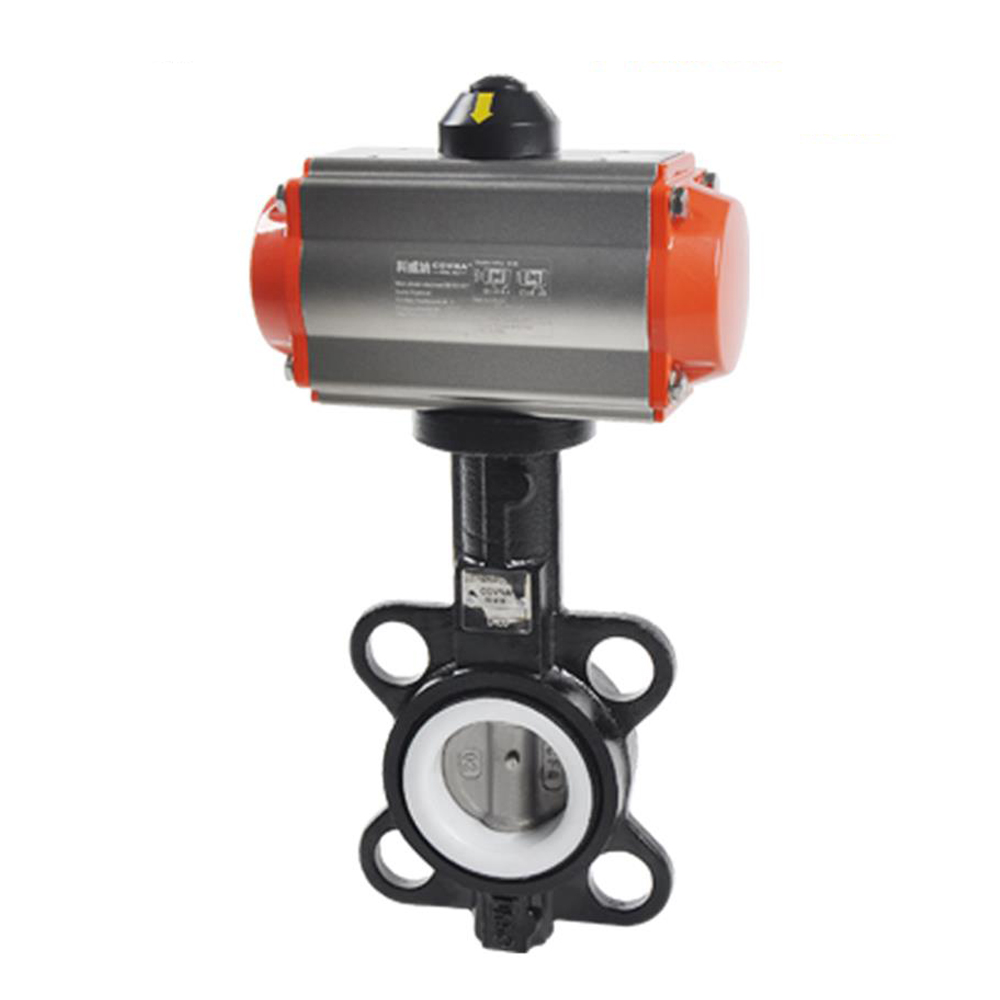

PTFE Seated Wafer Type Butterfly Valve with pneumatic actuator
- Compact structure, long service life, good sealing performance, easy maintenance, quick detachable and installation
- Pneumatic and electric devices can be configured according to user requirements to meet the needs of remote control and program control
- The structure is simple and compact, the operation torque is small, and the 90-degree rotation is quickly opened
- Stable performance, Widely used in various industries for both on-off and regulating service
- Can be equipped with positioner, limit switch, hand wheel, solenoid valve etc.
| Double acting | Air to open, air to close, air supplier failure to keep the current position |
| Single acting N/C | Air to open, interrupt air to close, air failure to close |
| Single acting N/O | Air to close, interrupt air to open, air failure to open |
| Optional accessory | Reversing solenoid valve, limit switch box, air filter reducing valve, positioner, handle manual, lock up valve. |
| Body | Valve components | ||
| Size range | DN50~DN400 | Sealing material | PTFE, PPL, NBR |
| Body material | Cast Iron, WCB | Core material | Stainless steel |
| End conection | Wafer, Flange | Stem material | Stainless steel |
| Operating pressure | 1.0, 1.6MPa | Applicable media | Water, oil, Gas, Liquid, steam, powder, anti-corrosive base |
| Structure | Midline Structure/ A-type | ||
