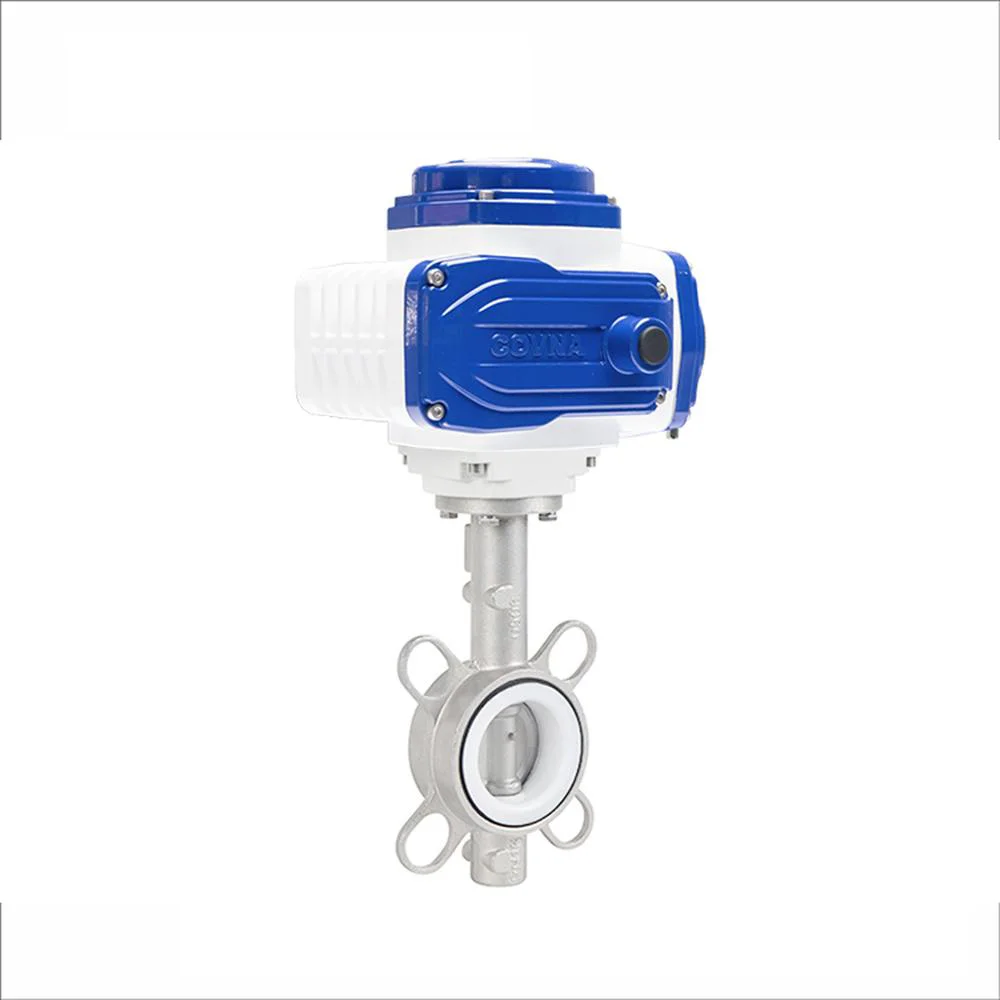

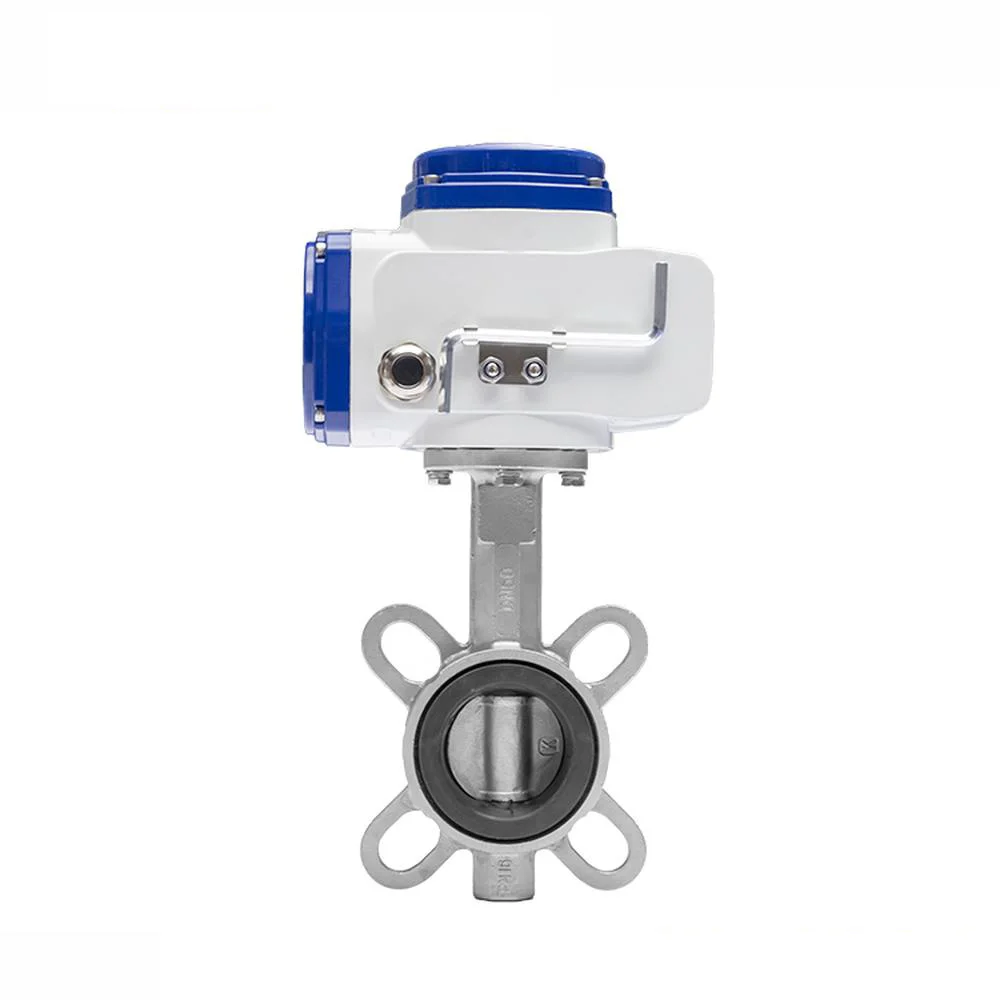

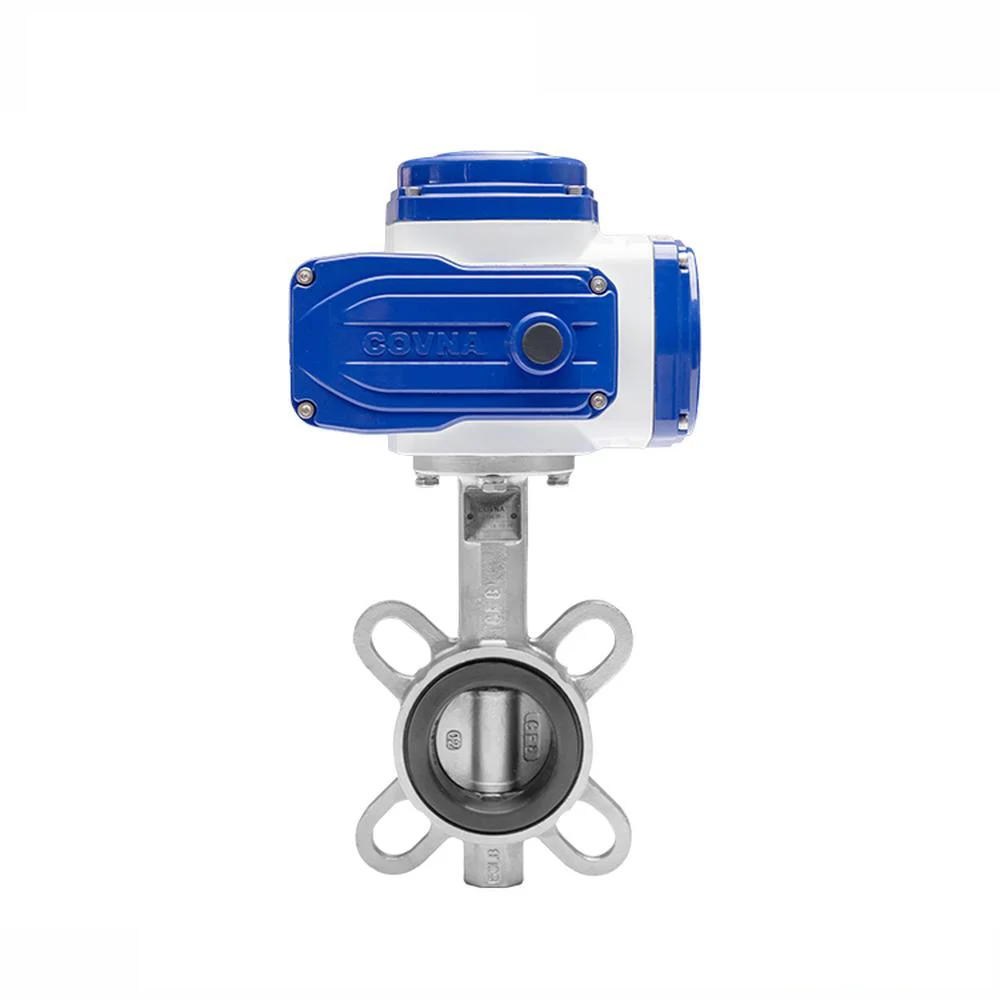

COVNA HK60-D-S Stainless Steel Electric Actuator Butterfly Valve
This motorized actauator valve particularly suitable for medium thick, containing particles. It could be equipped with on off type actuator, modulating type actuator and intelligent type actuator. Manual override is available. Suitable for water, oil, air, etc. Widely used for different industry such as desalination plant, wastewater treatment and so on for flow control. Torque range is 50Nm(442 in-lb) to 2500Nm(22123 in-lb).Size range from 2 inch to 12 inch(2″, 2.5″, 3″, 4″, 5″, 6″, 8″, 10″, 12″ ).
- Model: HK60-D-S
- Size Range: 2'' to 24''
- Pressure Range: 1.0MPa~1.6MPa
- Material: Stainless Steel
Wafer Type Motorized Butterfly Valve
- Butterfly valve with electric actuator with long service life and good sealing performance
- Connection: Wafer, Lug, Tri Clamp and Flangeend
- Easy automation/Retrofit possible
- Steam lined valve disc ensures lower pressure drop
- Size range from 2 inch to 12 inch(2″, 2.5″, 3″, 4″, 5″, 6″, 8″, 10″, 12″ )
- 100% tight Bidirectional shut off
| Valve Body | Valve components | ||
| Nominal size | DN50-DN600 | Sealing material | PTFE,NBR,EPDM |
| Body Material | Stainless steel | Disc Material | SS304 |
| End Connection | Wafer | Stem Material | Stainless Steel |
| Operating Pressure | 1.0 / 1.6 / 2.0 / 6.4 MPa (10 / 16 / 20 / 64 bar) | Applicable media | Water, Air, Gas, Oil, Liquid |
| Structure | Midline structure/A-Type | Design standard | ISO, DIN, IDF, SMS, 3A |
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: EX ll BT4 |
| Torque Range |
50Nm to 2500Nm |
| Model | 05 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
● ON/OFF Type Electric Actuator: 90 degree rotation. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
● Modulating Type Electric Actuator: Adjust open/close angle from 0 to 90 degree. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
● Intelligent Type Electric Actuator: Adjust open/close angle from 0 to 90 degree. LED display screen to allow you check the open/close angle easier. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
