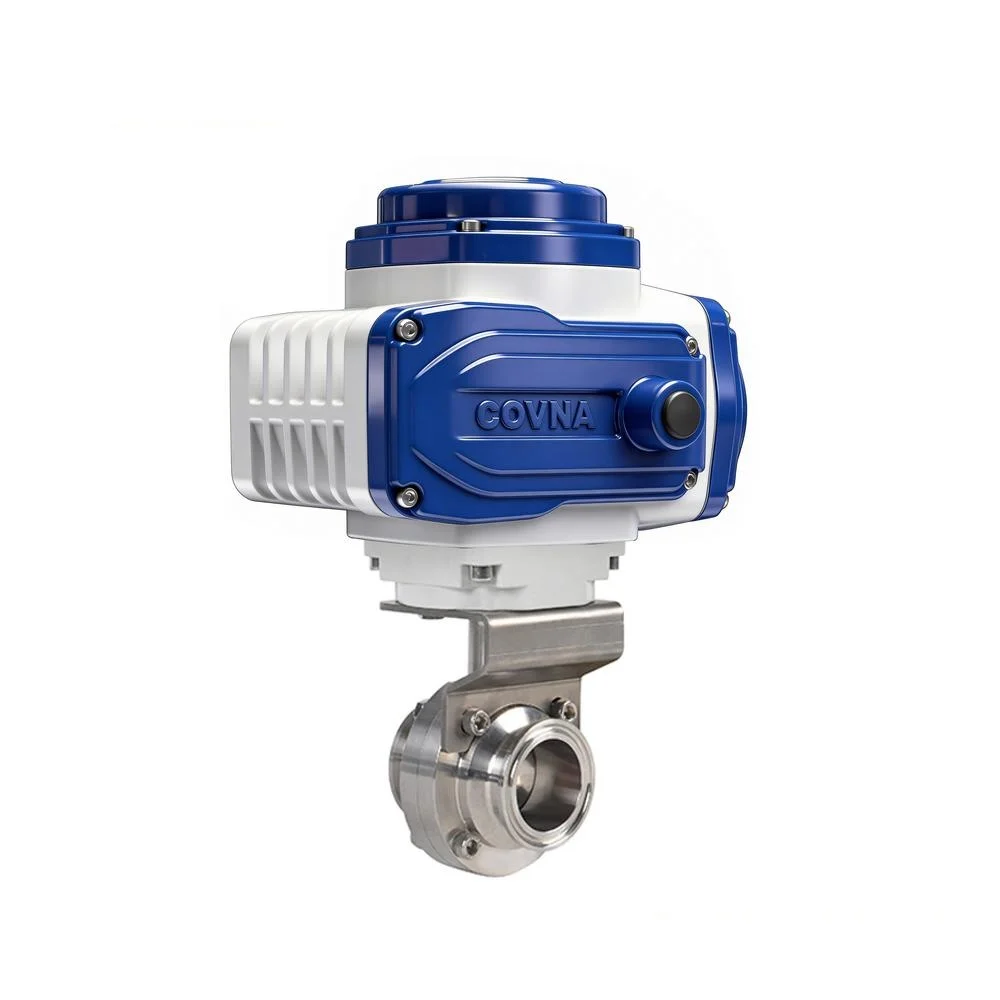

COVNA HK60-D-W Stainless Steel Sanitary Motorized Butterfly Valve
Sanitary food grade electric actuator butterfly valve is very suitable for beer, milk, pure water, soft drink, etc. Widely used for food&beverages industry. Large size range for choice, 2 inches to 24 inches are available. Food safe, easy connection. Voltage choice: DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz.
Actuator type: intelligence type electric actuator, modulating/regulating type electric actuator, on/off control typ eelectric actuator for butterfly valve, ball valve, gate valve, globe valve
- Model: HK60-D-W
- Size Range: 2'' to 16''
- Pressure Range: 0.0MPa~1.6MPa
- Material: Stainless Steel
Tri-clamp Butterfly Valve with Electric Actuator
- Novel design, reasonable, unique structure, light weight, quick opening and closing
- The operating torque is small, the operation is convenient, and the labor-saving and dexterous
- It can be installed in any position, easy maintenance
- Sealing materials are resistant to aging, corrosion and long service life
- Widely used in process control occasions such as food, pharmaceuticals, cosmetics, clean steam, alcohol, beverages, biochemical industrial processes
| Valve Body | Valve components | ||
| Nominal size | DN50-DN400 | Sealing material | PTFE, Silicone |
| Body Material | Stainless Steel | Disc Material | Stainless Steel 316 |
| End Connection | Tri-clamp | Stem Material | Stainless Steel |
| Operating Pressure | 1.0 / 1.6 MPa (10 / 16 bar) | Applicable media | Water, Air, Gas, Petroleum, Oil, Liquid |
| Structure | Midline structure A type | Design standard | GB, ASMI |
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: EX ll BT4 |
| Model | 05 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
● ON/OFF Type Electric Actuator: 90 degree rotation. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
● Modulating Type Electric Actuator: Adjust open/close angle from 0 to 90 degree. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
● Intelligent Type Electric Actuator: Adjust open/close angle from 0 to 90 degree. LED display screen to allow you check the open/close angle easier. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
