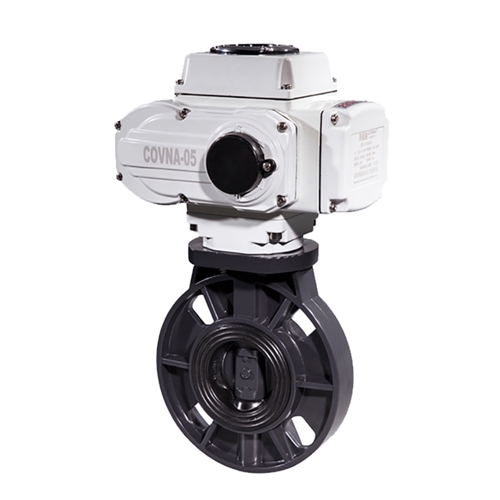

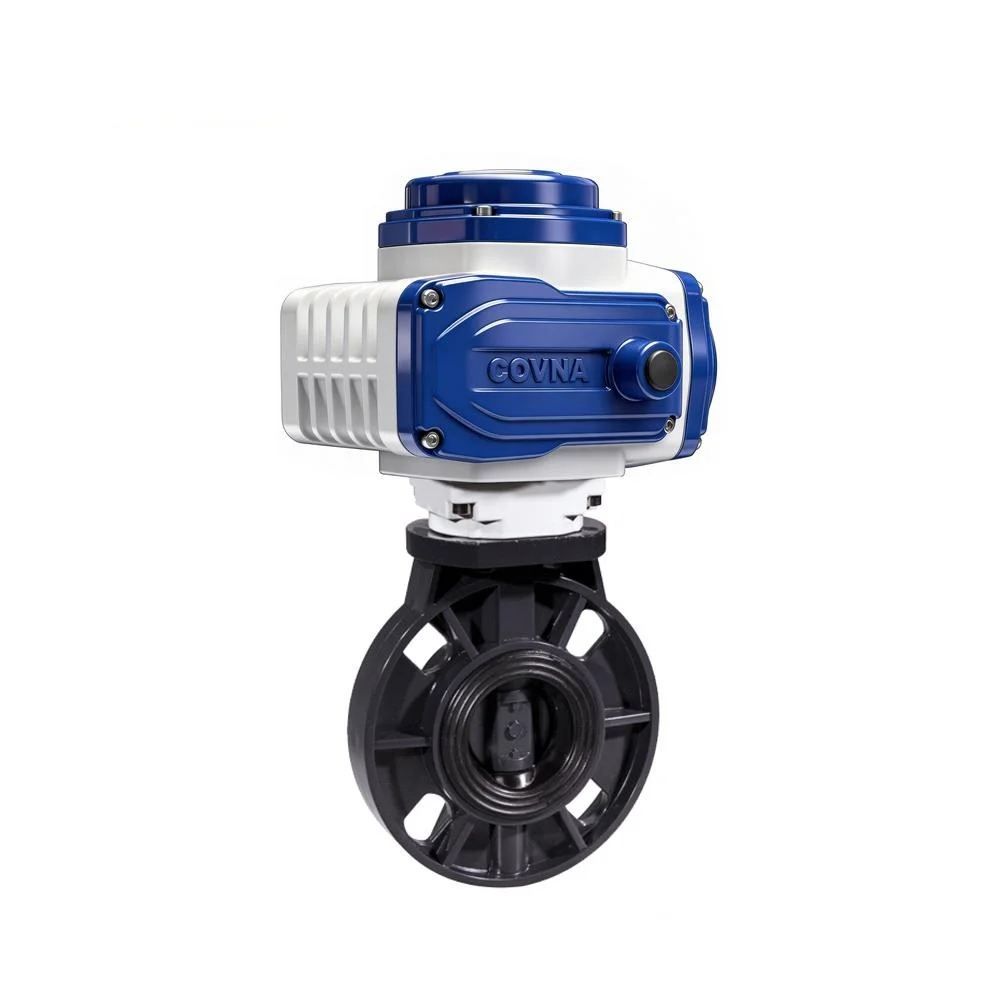

COVNA HK60-D-P CPVC Series Electric Plastic Butterfly Valve
COVNA HK60-D-P electric plastic pvc butterfly valve, standard on/off control, 4-20mA or 0-10VDC modulating control is available, UPVC or PVC body construction, optional CPVC, 220VAC standard voltage, minimum 2 inch lug connection, default NBR seat, suitable for most air, water, light oil, fuels, solvents, alcohol and many acids, EPDM seat is optional. Low Weight, Low Cost, Anti-Corrosive & Food Safe. Easy to operate and with a convenient modular design for gas or liquid piping system.
- Model: HK60D-P
- Size Range: 2" to 12"
- Pressure Range: 1.0MPa
- Material: PVC, UPVC, CPVC
COVNA Electric Actuated Fluorine Lined Plastic Butterfly Valve
- Industrial grade PVC butterfly valve, Polypropylene (PP) disc
- Pressure rated 150psi at 73°F. EPDM primary liner.
- ANSI 150 wafer-style flange connection
- Suitable for using with potable/drinking water
- Quarter turn operation with mechanical stops
- Actuator Type: ON OFF Type, Regulating Type and Intelligent Type
| Medium | Air, water, oil, etc | Port size | 2″, 2.5″, 3″, 4″, 5″, 6″, 8″, 10″, 12″ |
| Structure | Midline structure A type | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Port Thread | Wafer | Voltage Tolerance | ±10% |
| Body Material | UPVC | Working Pressure | 10 / 16 bar (145 / 232 psi) |
| Suitable Media | Water, Oil, Air, Gas, etc | Temperature Of Media | -5 to 80℃ (23℉ to 176℉) |
| On/Off Type | Feedback: The Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA |
| Modulating Type | Input & Output Signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The Field, Remote Control Switch Regulation And MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC-110V, 220V, 380V, DC-12V, 24V, Special Voltage Can Be Customized |
| Protection Class | IP65; Explosion Proof Construption Are Available: EX d II BT4 |
| Series | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A |
| Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W |
| Mounting Standard | ISO5211 direct mounting | |||||||
| Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | |||||||
| Input Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Output Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Protection Class | IP65 protection class | |||||||
| Ambient Temp | -20 to +60°C | |||||||
| Wiring Diagram | A: ON/OFF type with light indicator signal feedback | |||||||
| B: ON/OFF type with passive contact signal feedback | ||||||||
| C: ON/OFF type with resisance potentiometer signal feedback | ||||||||
| D: ON/OFF type with resistance potentiometer and neutral posistion signal feedback | ||||||||
| E: Regulation type with servo control module | ||||||||
| F: DC24/DC12V direct ON/OFF type | ||||||||
| G: AC380V 3-phase power supply with passive signal feedback | ||||||||
| H: AC380V 3-phase power supply with resistance potentiometer and neutral posistion signal feedback | ||||||||
– DESCRIPTION –
Electric Plastic Butterfly Valve should never be used for compressed gas applications.
Rugged unique integral motor/housing design provides higher torque in a very small package. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two auxiliary limit switches are included to confirm valve open and closed positions. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation. pvc motorized butterfly valve. pvc electric actuator butterfly valve. butterfly valve with electric. electric butterfly valve manufacturer actuator
