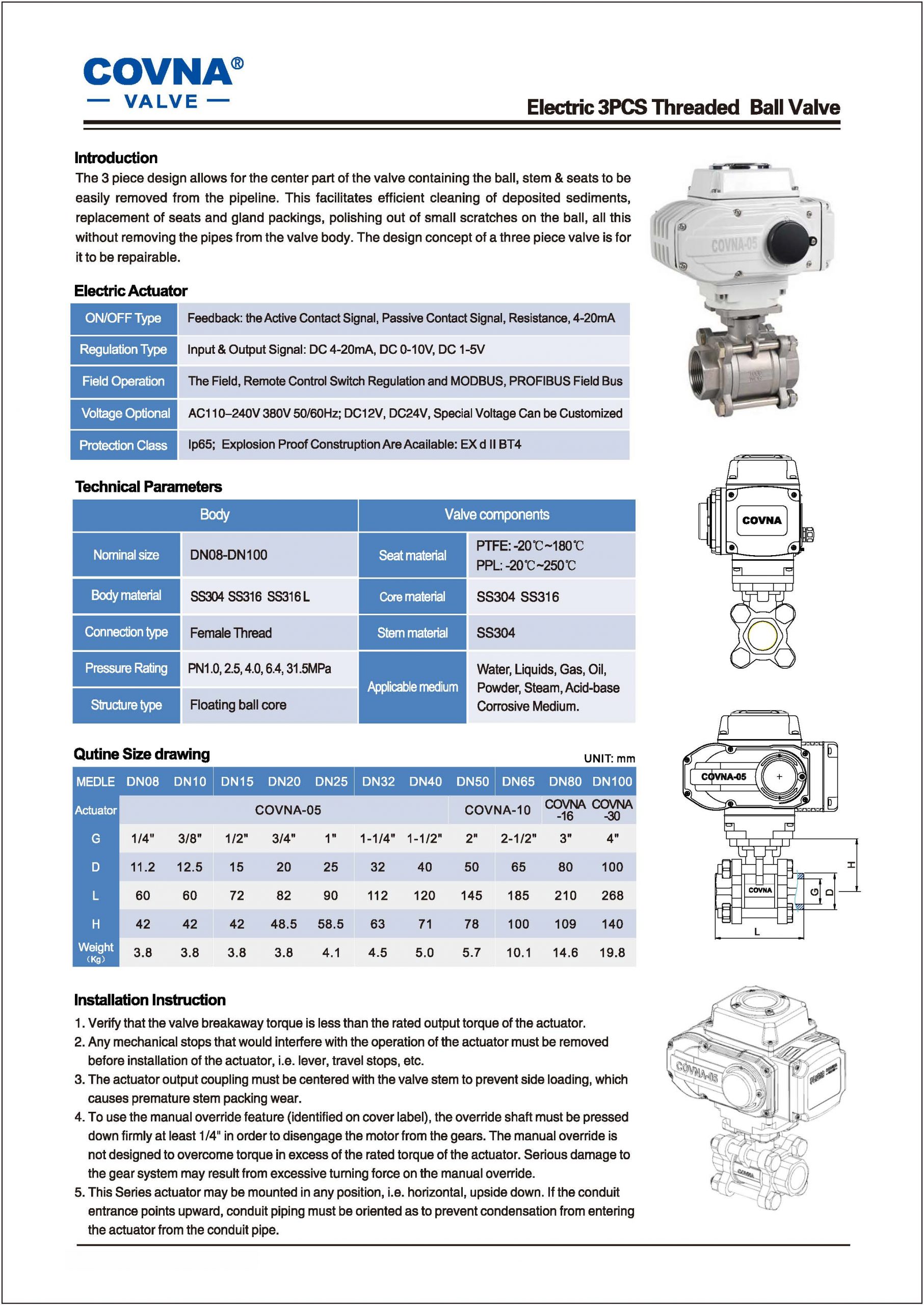

COVNA HK60Q-3PS 2 Inch 2 Way Motorized Electric Ball Valve
COVNA 3 pcs thread electric ball valve is combined with small electric actuator and three pieces ball valve, high precision casting body, high platform design, accord with ISO5211 standard, good interchangeable, directly mounting pneumatic actuator, electric actuator realize automatic control. Control type is divided into switch type and regulation type.
- Model: HK60Q-3PS
- Size Range: 1/4" to 4"
- Pressure Range: 1.6 to 6.4MPa
- Material: Stainless Steel
COVNA DN50 NPT Motorized Ball Valve
- Fire protection design, Stem explosion-proof design
- ISO5211 standard direct mounting actuator
- Antistatic device between the core and the valve body
- Double butterfly shaped spring automatic compression packing design
- Allow pressure differential: Less than nominal pressure 1.6MPa
- Leakage: Zero leakage, Return difference: ±2.5%
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: EX ll BT4 |
|
Model
|
HK60Q-3PS
|
Voltage
|
12V DC
|
|
MOQ
|
1 Set
|
Actuator Type
|
On Off Control
|
|
Applicable Standard
|
GB
|
No. of Ways
|
2 Way
|
|
Port Size
|
2.5 inch
|
End Connection
|
BSP Thread
|
|
Operating Pressure
|
1000 WOG
|
Media
|
Water, Air, Gas
|
|
Body Material
|
Stainless Steel
|
Temp. of Media
|
-10°C to 180°C
|
|
Valve Ball
|
Stainless Steel
|
Certification
|
ISO 9001, CE, TUV, SGS
|
|
Sealing Material
|
PTFE
|
Warranty
|
1 Year (12 Months)
|
Get A Quick Quote
