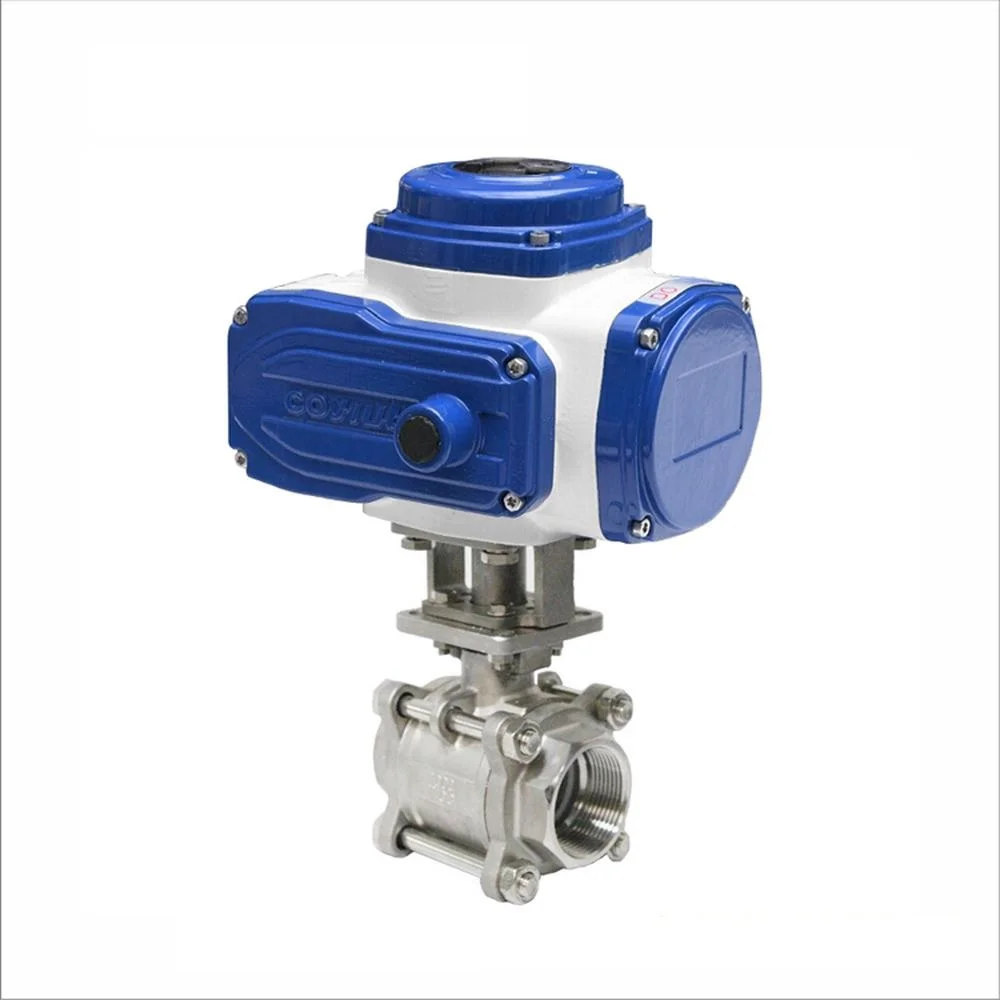

COVNA HK60-Q-3PS Series Electric Actuator 3PC Ball Valve
COVNA HK60Q-3PS electric ball valve, standard on/off control, 4-20mA or 0-10VDC modulating control is available, stainless steel body construction, optional WCB, 220VAC standard voltage, minimum 1/4 inch female thread connection, default PTFE seat, resistant to almost all fluids. Suitable for higher operating pressures and temperatures. Size range available in 1/2 inch, 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch, 2 inch, 2.5 inch, 3 inch and 4 inch. Voltage optional: 12V, 24V DC; 24V, 110V, 220V, 380V AC.
Welcome to contact us to get the most competitive electric ball valve price!
- Model: HK60Q-3PS
- Size Range: 1/4" to 4"
- Pressure Range: 1.6 to 6.4MPa
- Material: WCB, Stainless Steel
COVNA Electric 3Pieces Stainless Steel Ball Valve
● Features: Compact Design, Eco-friendly, Easy Installation, etc
● Torque: 50N.m or 4000N.m
● Rotation: Quarter-turn
● Actuator Type: ON OFF Type, Regulating Type and Intelligent Type
● Material: Stainless Steel
● Connection: 3PC Thread, Tri Clamp, Flange and Welding
● Suitable for water, oil, air, etc. Widely used in HVAC, irrigation, water treatment, etc.
Technical Parameter of Valve Body:
| Body Material | Stainless Steel 304/316/316L | Working Pressure | 10 / 16 / 20 / 64 bar |
| Temperature Of Media | -30~180℃ (-22℉~356℉) | Suitable Media | Water, Air, Oil, Gas, etc |
| Structure | Straight Through Flow Path | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Port size range | DN08-DN100 | Voltage Tolerance | ±10% |
| Actuator Type | ON OFF Type, Modulating Type, Intelligent Type, Explosion-proof Type and Multi-turn Type | Port Thread | Threaded/Flanged/Welding/Tri-clamp |
Technical Parameter of Actuators:
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistant, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 |
| Model | 05 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
- ON/OFF Type Electric Actuator: 90 degree rotation. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
- Modulating Type Electric Actuator: Adjust open/close angle from 0 to 90 degree. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
- Intelligent Type Electric Actuator: Adjust open/close angle from 0 to 90 degree. LED display screen to allow you check the open/close angle easier. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
As a professional electric ball valve manufacturer, COVNA aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service with omprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.
- 20 years manufacturer of actuated valves
- Mass customaztion acceptable. 3 production base, large stock,
- Short lead time, same day shipping.
- German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured.
- Industrial standard 1 year (12 months) warranty.
- ISO 9001 certificated, with extra certifications include CE, TUV, RoHS, SGS, BV, explosion & fire safe.
- OEM / ODM service available. Can do JIS 5K / 10K, ANSI 150lb / 300lb / 600lb / 900lb standard.
More infomation, pls send message to us. Quote will be provided within 2 hours!
