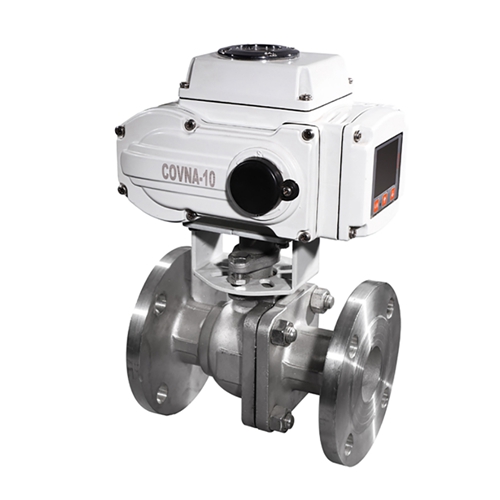

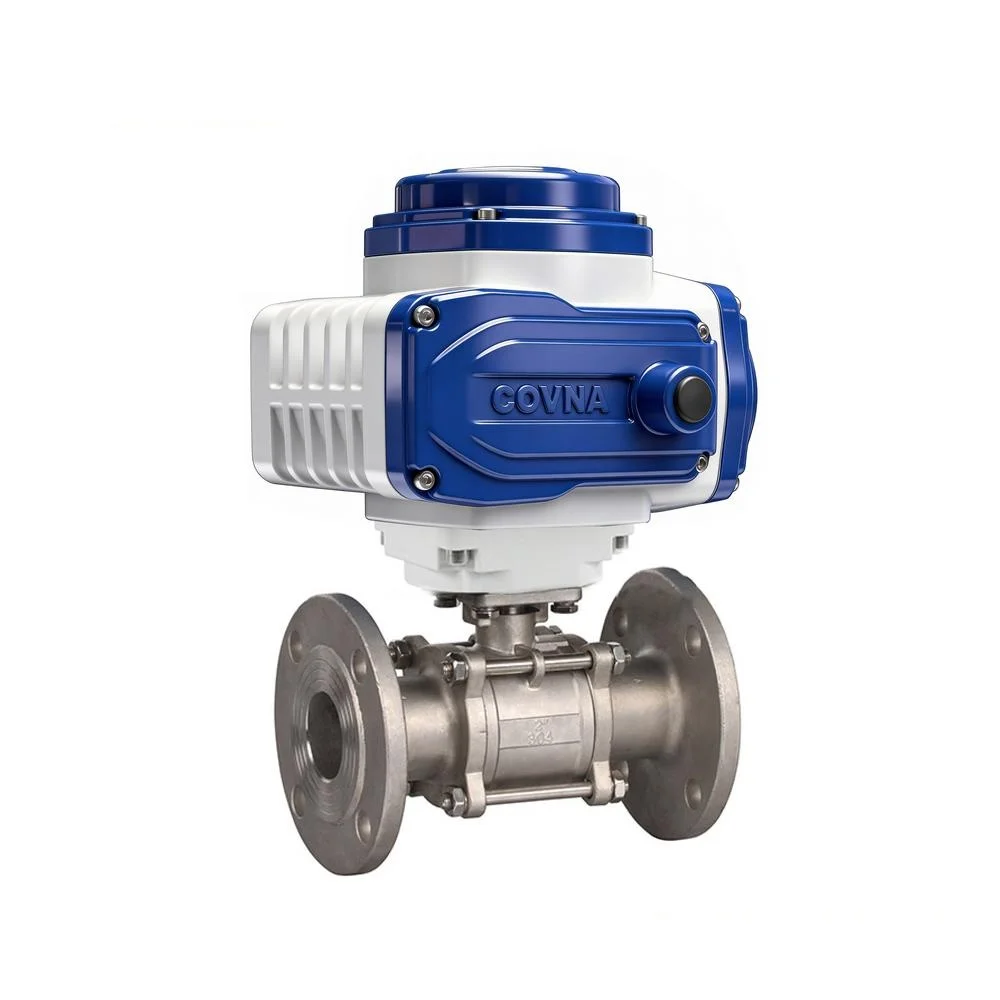

COVNA HK60-Q-F 3PS Electric 2 Way Flange Ball Valve With Actuator
COVNA HK60-Q-3PS electric flange ball valve, 2 way , standard on/off control, 4-20mA or 0-10VDC modulating control is available, 304 or 316 stainless steel body construction, 220VAC standard voltage, minimum 1/2 inch flanged connection, default PTFE seat, resistant to almost all fluids. Suitable for higher operating pressures and temperatures.
As a electric ball valve manufacturer, COVNA offers 2 pc 2 way, 3way, 4way flange/ male/femal thread/tri-clamp/butt-welded/pvc double union electric ball valve.Butterfly valve, pneumatic actuated valve and solenoid valve are also available.
Welcome to contact us and get q quote now!
- Model: HK60-Q-3PS-F
- Size Range: 1/2" to 8"
- Pressure Range: 1.6 to 2.0 MPa
- Material: WCB, Stainless Steel
COVNA 3PC 2 Way Electric Actuated Stainless Steel Flange Ball Valve
- Torque Range from 50Nm to 4000Nm.
- Valve type : 2-Ways & 3-Ways & 4 Way Flange Ball Valve (T Type and L Type)
- Flange Standard: ANSI, JIS, DIN, GB are available.
- TFM 1600 Seat Material (PTFE, RTFE, TFE/SS Options)
- Blow-out Proof Stem Pressure Balance Hole in Ball Slot
- Widely used in chemical industry, paper & pulp, water treatment, etc.
Technical Parameter Of Valve Body:
| Size Range | DN15-200 | End Connection | Flange |
| Body Material | Stainless Steel 304/316/316L | Working Pressure | 10 / 16 / 20 MPa |
| Temperature Of Media | -10 to 180℃ (-22℉to 356℉) | Suitable Media | Water, Air, Oil, Gas, etc |
| Structure | Straight Through Flow Path | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Actuator Type | ON OFF Type, Modulating Type, Intelligent Type | Voltage Tolerance | ±10% |
Technical Parameter Of Actuators:
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistant, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 |
● ON/OFF Type Electric Actuator: 90 degree rotation. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
● Modulating Type Electric Actuator: Adjust open/close angle from 0 to 90 degree. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
● Intelligent Type Electric Actuator: Adjust open/close angle from 0 to 90 degree. LED display screen to allow you check the open/close angle easier. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
| Series | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A |
| Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W |
| Mounting Standard | ISO5211 direct mounting | |||||||
| Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | |||||||
| Input Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Output Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Protection Class | IP65 protection class | |||||||
| Ambient Temp | -20 to +60°C | |||||||
| Wiring Diagram | A: ON/OFF type with light indicator signal feedback | |||||||
| B: ON/OFF type with passive contact signal feedback | ||||||||
| C: ON/OFF type with resisance potentiometer signal feedback | ||||||||
| D: ON/OFF type with resistance potentiometer and neutral posistion signal feedback | ||||||||
| E: Regulation type with servo control module | ||||||||
| F: DC24/DC12V direct ON/OFF type | ||||||||
| G: AC380V 3-phase power supply with passive signal feedback | ||||||||
| H: AC380V 3-phase power supply with resistance potentiometer and neutral posistion signal feedback | ||||||||
