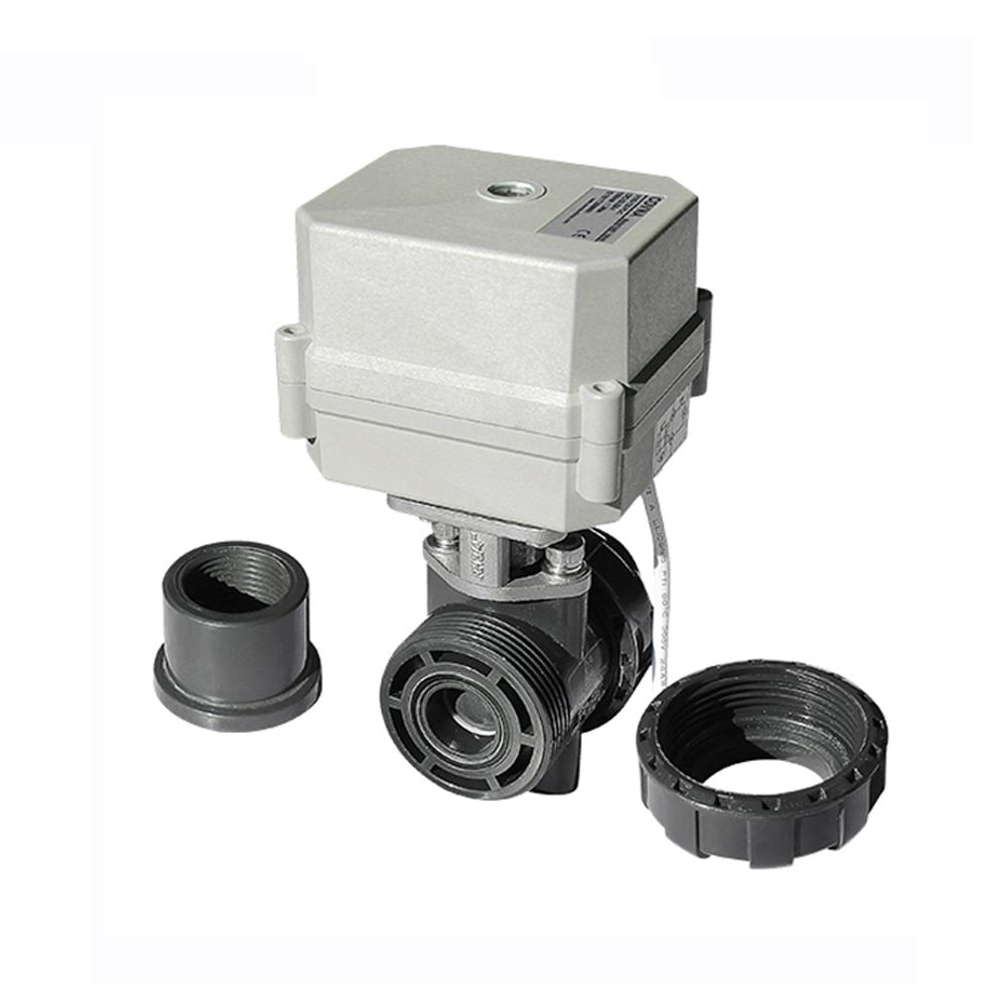

COVNA HK62-PY 2 Way UPVC Electrically Actuated Ball Valve
True union UPVC valve body with spring return electric actuator. High torque output. 13 optional wiring diagram for your choice to meet your system requirements. size range from 1/2”~2”; Open/close time less than 15 seconds. It has been successfully applied in many industrial fields, such as air conditioning system, fire fighting system, water treatment system, pipeline purging, analytical instruments, flue gas sampling and other industries.
- Model: HK62-PY
- Size Range: 1/2" to 2"
- Pressure Range: 0~1.0MPa
- Material: UPVC, Stainless Steel or brass
COVNA UPVC Electric Water Ball Valve
- All-copper gear design, high accuracy output torque, especially for mulchannel scaling system
- With self-cleaning function, effectively ensure the pipeline smooth
- Small size, compact structure, easy to operate, good sealing performance
- A variety of control methods, either to accept remote valve position control signal, but also the feedback Signal in place for computer intelligence unittesting
- Leakage: Zero leakage, Return difference: ±2.5%
|
Model
|
HK62-PY
|
Voltage
|
AC110V~230V, DC9~24V |
|
MOQ
|
1 Set
|
Working current
|
≤800mA
|
|
Open/Close time
|
≤15s |
No. of Ways
|
2 Way
|
|
Torque output
|
10N.M
|
End Connection
|
BSP Thread
|
|
Life time
|
70,000 times
|
Medium
|
Fluid, Water, Air
|
|
Body Material
|
Brass, ss304, ss316(optional)
|
Temp. of Media
|
2°C to 90°C
|
|
Valve Ball
|
UPVC
|
Certification
|
ISO 9001, CE, TUV, SGS
|
|
Sealing Material
|
PTFE
|
Indicator
|
Yes
|
|
Cable length
|
0.5mm, 1.5mm(optional)
|
Manual override
|
NO
|
|
Actuator material
|
Engineering Plastics
|
Ambient temperature
|
-15°C to 50°C
|
|
Gasket
|
PTFE
|
Protection class
|
IP67
|
|
Line control
|
CR2-01,CR2-02,CR3-03,CR4-01,CR5-01,CR5-02, CR7-03, Cr7-04(Optional) | ||
