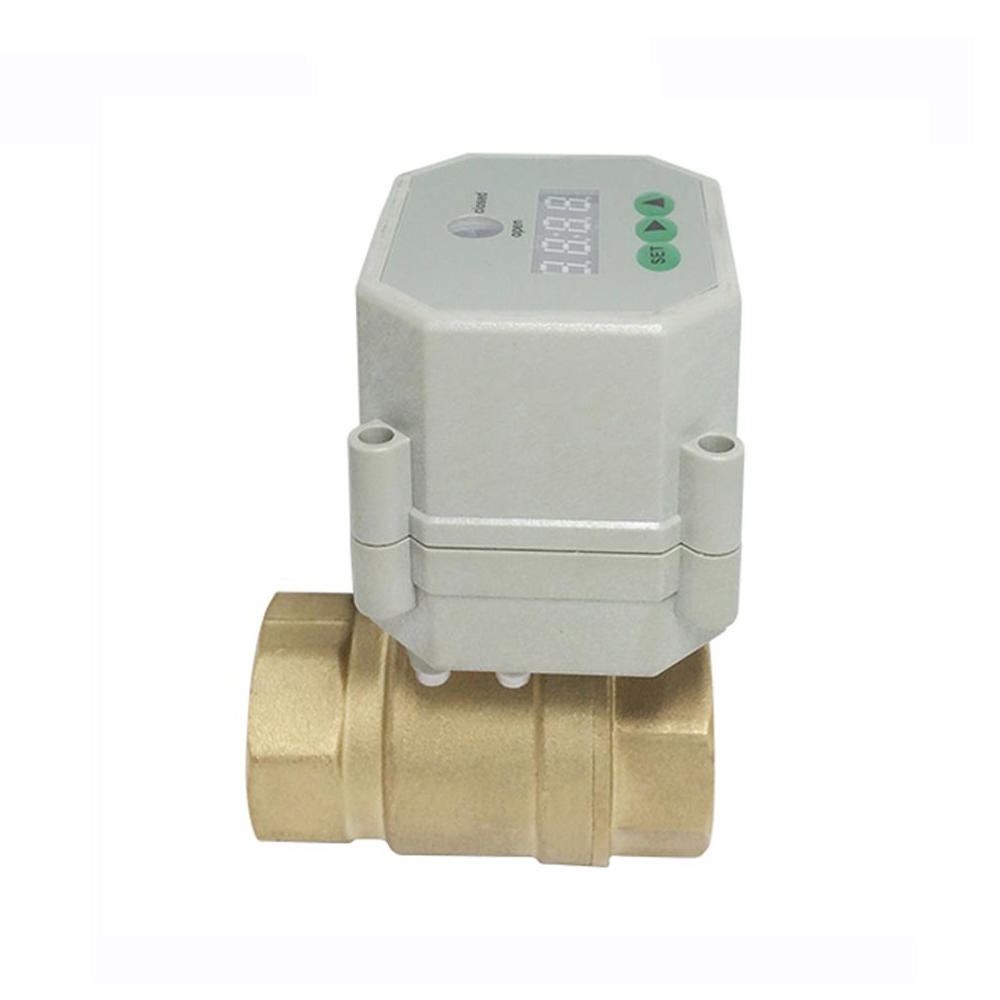

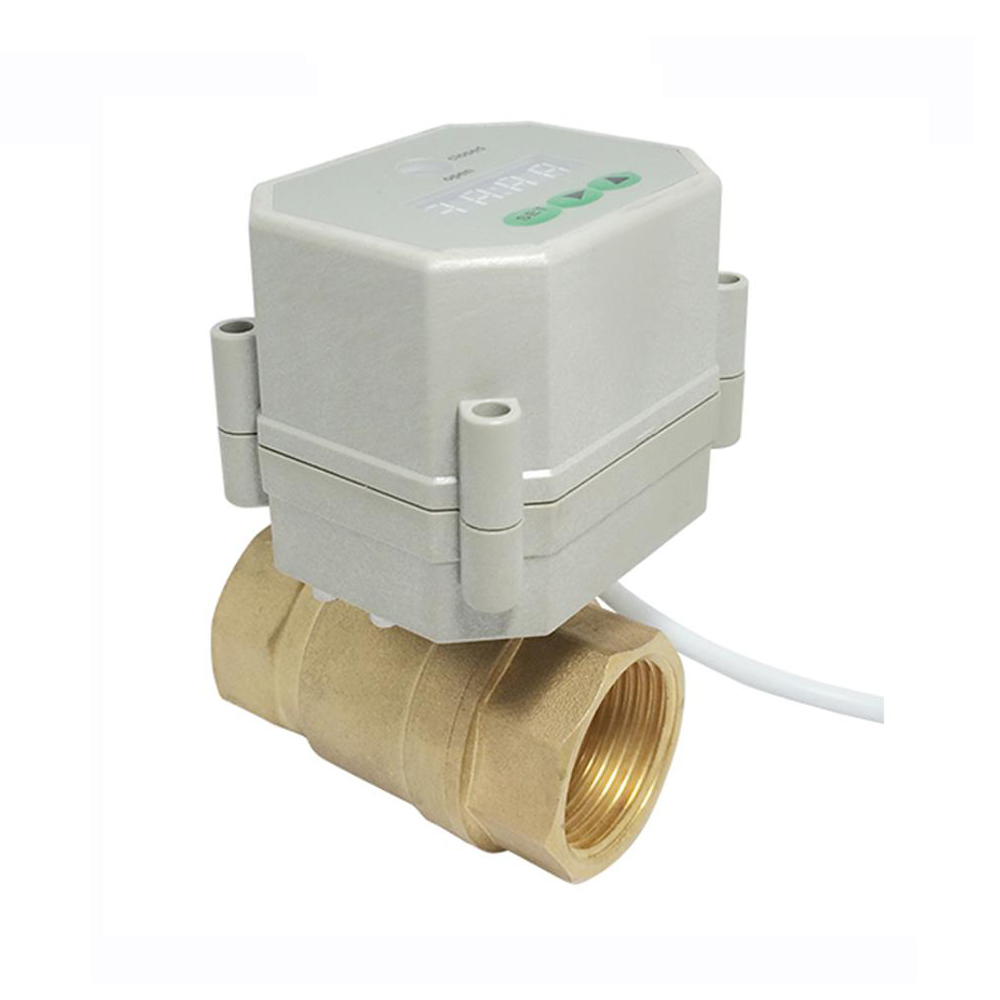

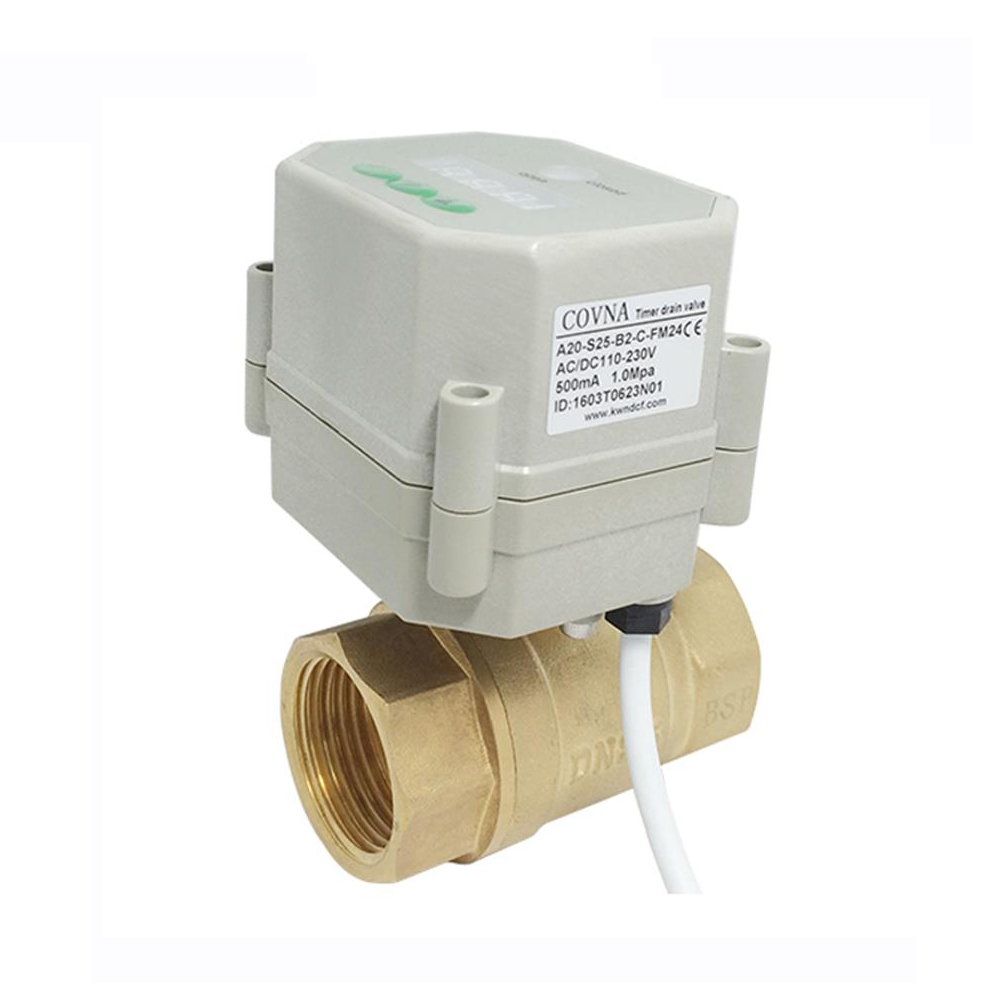

COVNA HK65-H 2 Way Miniature Motorized Ball Valve with timer
COVNA Miniature Time Control Motorized Ball Valve with brass and stainless steel material. Working voltage: AC110V~230V, DC9~24V. Zero leakage and good sealing performance. Open/close time less than 5 seconds. Suitable for water, air and so on. Suitable for HVAC system, automatic machinery and so on.
Miniature Motorized Ball Valves are two-way(two ports or two openings) quarter-turn ball valves. The motorized ball valves here are not for regulating flow, they can be fully opened or fully closed automatically receiving a control signal.
- Model: HK65-H
- Size Range: 1/2" to 1"
- Pressure Range: 0~1.0MPa
- Material: Stainless Steel or brass
COVNA 1 Inch Brass or Stainless steel Motorized Ball Valve
- Full copper gear design, high precision and high torque output
- Compact design and structure
- Low operating current. Battery can act as power source
- Good sealing performance. IP67 protection class
- Leakage: Zero leakage, Return difference: ±2.5%
|
Model
|
HK65-H
|
Voltage
|
AC110V~230V, DC9~24V |
|
MOQ
|
1 Set
|
Working current
|
≤80mA
|
|
Open/Close time
|
≤7s |
No. of Ways
|
2 Way
|
|
Port Size
|
2.5 inch
|
End Connection
|
BSP Thread
|
|
Life time
|
100,000 times
|
Medium
|
Water, Air
|
|
Body Material
|
Brass, ss304, ss316
|
Temp. of Media
|
2°C to 90°C
|
|
Valve Ball
|
Stainless Steel
|
Certification
|
ISO 9001, CE, TUV, SGS
|
|
Sealing Material
|
SEPDM
|
Indicator
|
Yes
|
|
Keeping Valve Open Time
|
0H:0M:OS-99H:59M:59S
|
Manual override
|
NO
|
|
Actuator material
|
Engineering Plastics
|
Ambient temperature
|
15°C to 50°C
|
