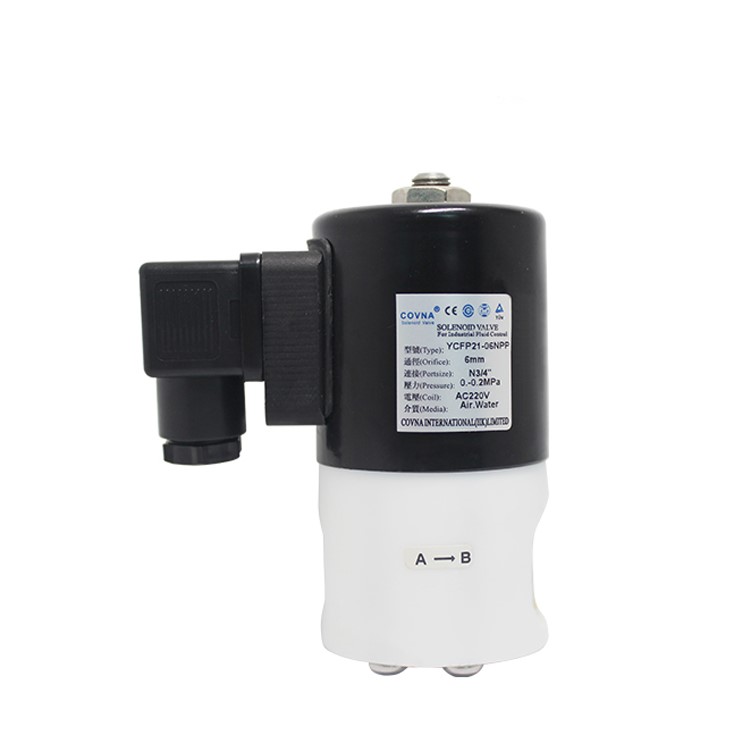

COVNA HKFP Direct Acting Anti-corrosion PTFE Solenoid Valve
COVNA HKFP 2 way 2 Position Fluid Control anti corrossive solenoid valve with PTFE body is to control On/Off of air, inert gas, liquid, and vacuum. 1/8 inch~1inch threads and a 24V DC coil. The anti-corrosion solenoid valve is applied to strong corrosive fluid medium and super pure fluid such as strong acid, strong alkali, strong oxidant and organic solvent. The best matching products widely used in automatic fluid control of various corrosive media
- Model: HKFP
- Size Range: 1/8''~1''
- Pressure Range: 0.0MPa-0.15MPa
- Material: PTFE
COVNA HKFP Normally Closed 2/2 Diaphragm PTFE(Teflon)Solenoid Valve
- Anti-corrosion solenoid valve with isolated diaphragm construction to rot-proof PTFE body for corrosion resistant.
- Suitable for most of corrosive medium. Widely used in chemical industry, cosmetics industry, hydrochloric acid, concentrated sulfuric acid, various electroplating solutions, aromatic solvents, aliphatic solvents, high-purity fluids and other pipeline automatic control.
- COVNA supply various knids of solenoid valve such as anti corrosive type, water-proof type, general purpose type for your applications.
- As a solenoid valve supplier, COVNA committed to help you select the right and quality solenoid valve and save your time and cost.
| Port Size | 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1” | Orifice(mm) | 3,8 |
| Port Connection | BSPP,BSPT, NPT | Function | Normally closed or opened |
| Pressure | 0.00MPa-0.15MPa | Voltage | DC-12V, 24V, 36V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz |
| Temperature of media | PTFE Seal: -10~180℃ | Suitable Media | Corrosive fluid and gas, Acid. Alkali, etc |
| Material | Stainless steel or Brass | Sealing Material | PTFE |
| Coil | Y82B, 35VA(AC), 30W(DC), 100%ED | ||
| Coil | YD1B, 8VA(AC), 8W(DC), 100%ED | ||
