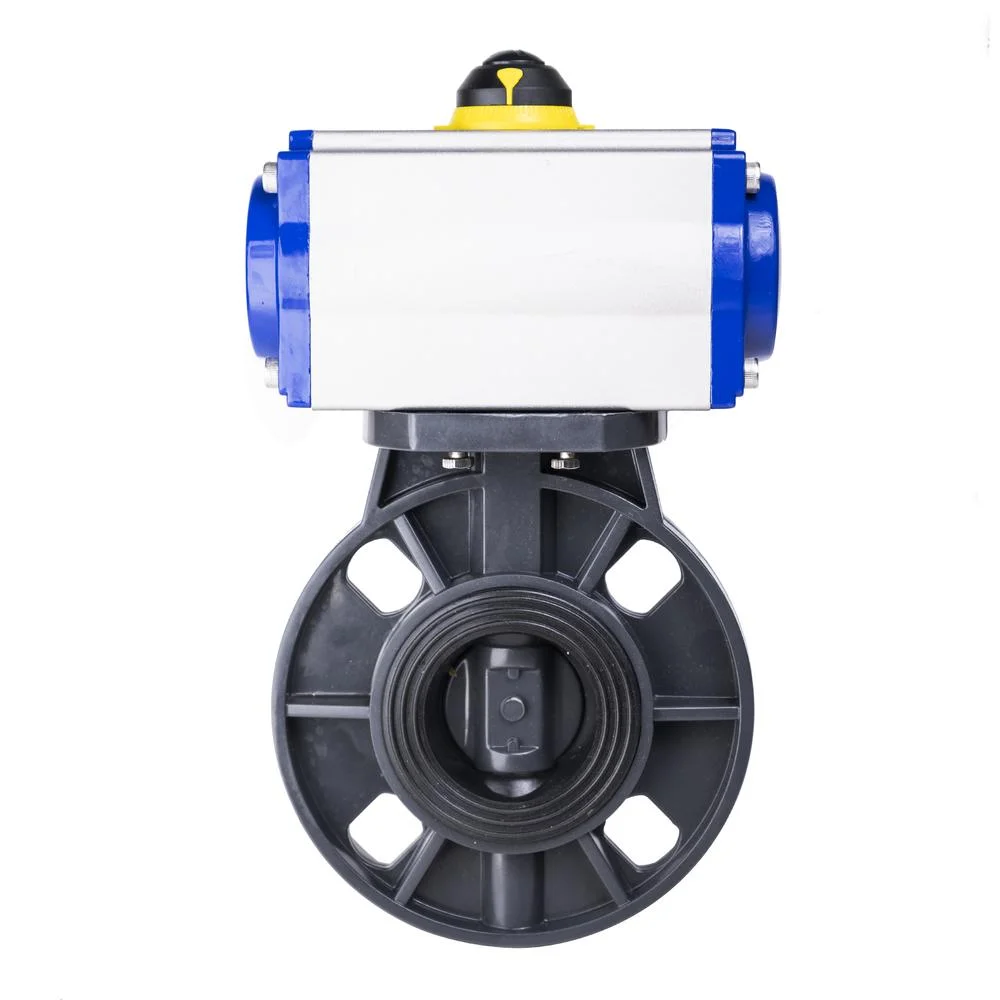

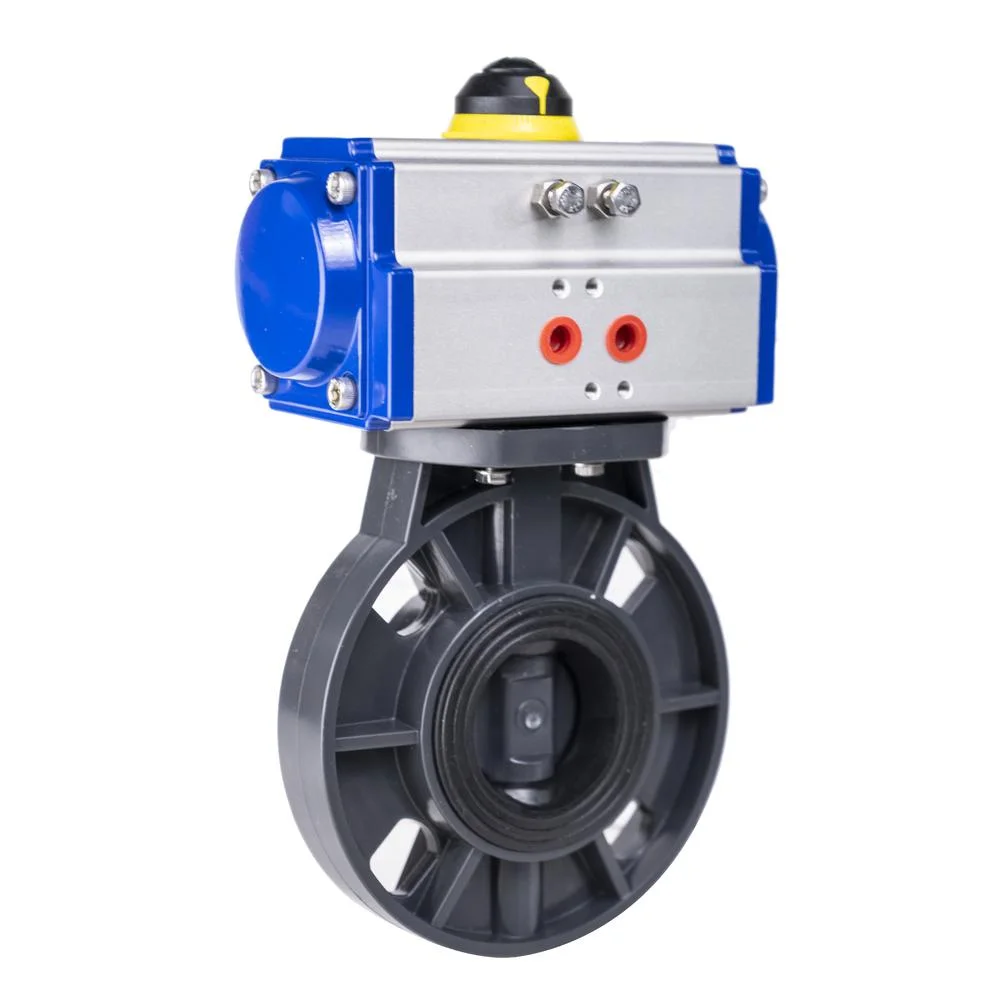

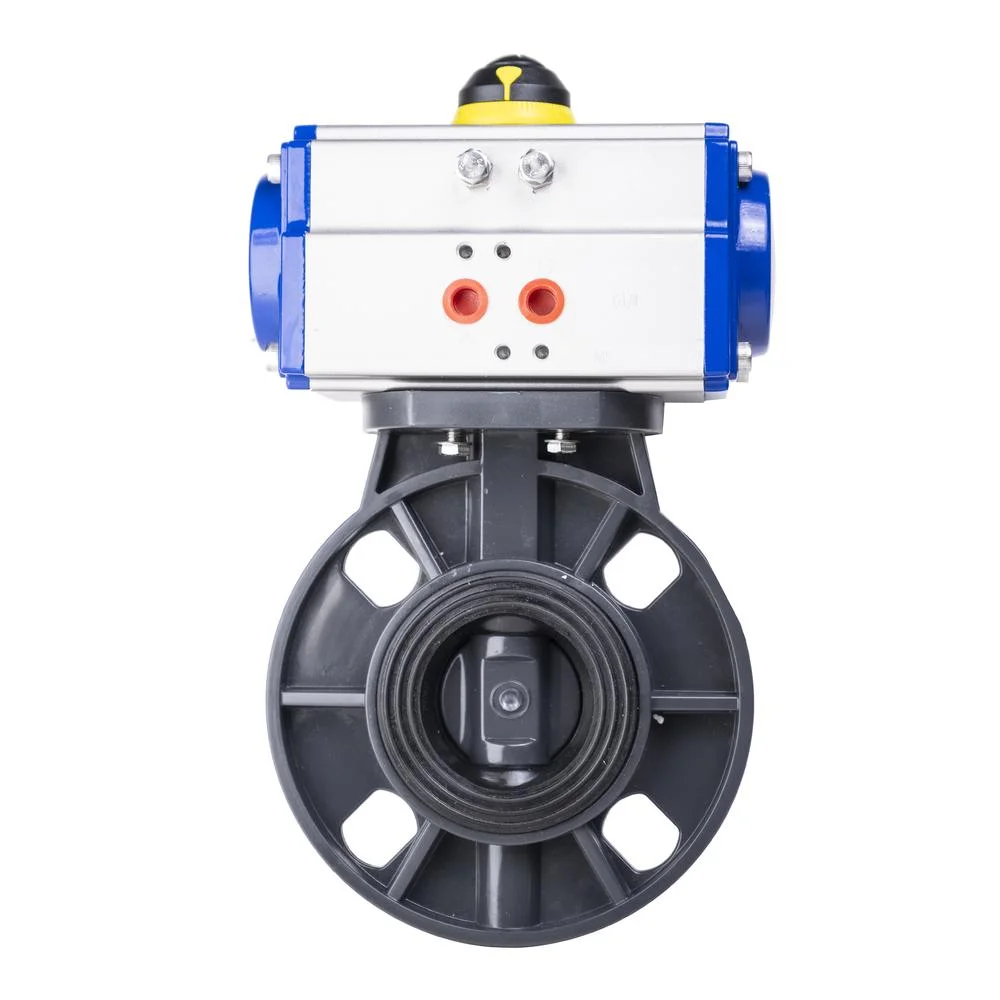

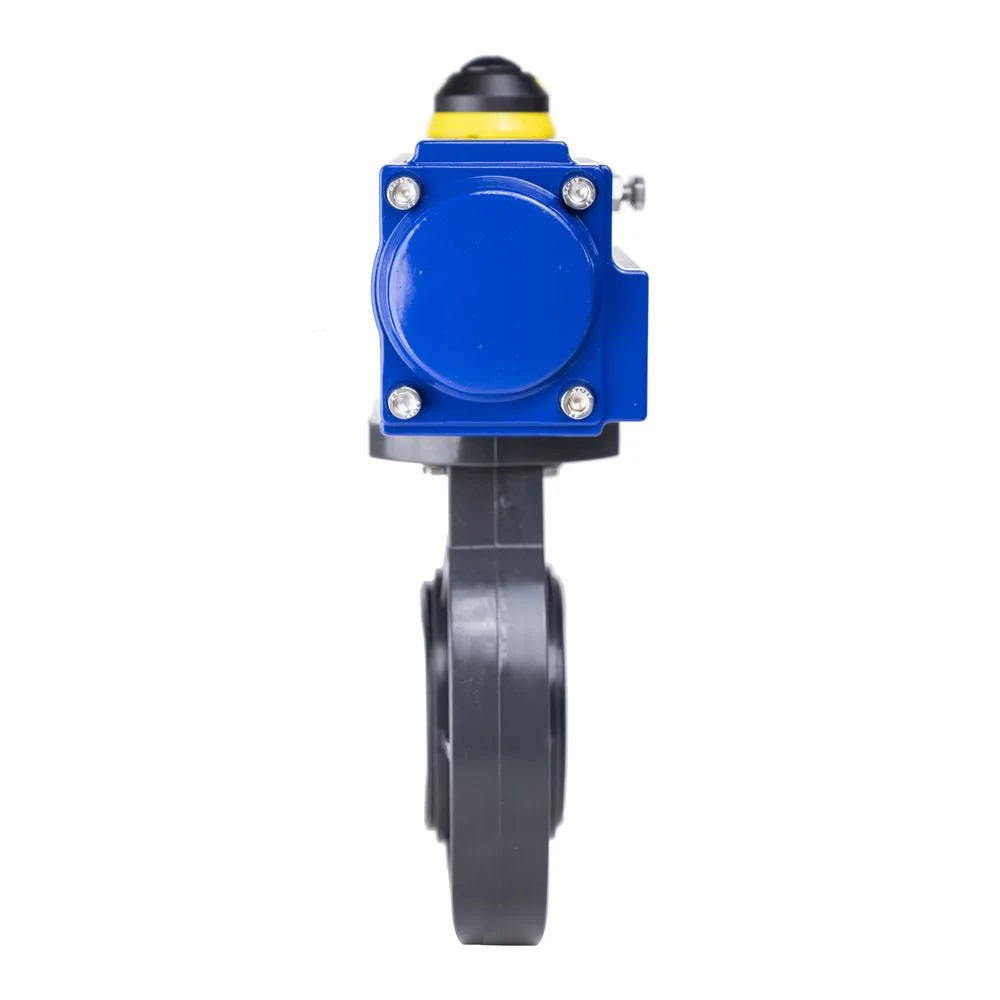

COVNA HK59-D-P Pneumatic Actuator PVC Butterfly Valve
COVNA HK59-D-P Pneumatic Actuator Plastic PVC Butterfly Valve With Fluorine Lined is widely used in the sealing surface material of sanitary valve. With good sealing performance, it is also widely used in vacuum system etc. Pneumatic Actuated PVC Butterfly Valve make ideal for water and light industrial applications. The special trapezoidal shape of the bushing and the jagged cavity ensures an air-tight seal while keeping the separation torque to an absolute minimum. This multi-function valve has a double self-lubricating seal, the function of directly mounting the actuator, or the option of a handle or a gear box or Actuator.
- Model: HK59-D-P
- Size Range: 2"-24"
- Pressure Range: 1.0MPa
- Material: PVC, CPVC, UPVC, PVDF
COVNA Pneumatic Actuator PVC Butterfly Valve
- Standard ISO square size for direct mounting of actuators Disc/seat with trapezoidal elastic lining provides hermetic seal;
- Bushing completely isolates the valve body from the process flow;
- Bushings are used as flange gaskets on both sides of the valve;
- Body cavity has special channels to prevent liner slippage and compression;
- EPDM, NBR, PTFE seal O-ring shaft seal;
Technical Parameter Of PVC Pneumatic Actuator Butterfly Valve:
| Size Range | DN50-DN500(2″ – 20″) |
| Body Material | Plastic UPVC |
| Connection Type | Wafer, Flanged |
| Pressure Rating | 10bar |
| Structure Type | Midline Structure A Type |
| Sealing Material | NBR, EPDM |
| Stem Material | Plastic UPVC |
| Application Medium | Water, Air, Gas, And Other Medium |
Technical Parameter Of PVC Pneumatic Actuator:
| Double Acting | Air To Open, Air To Close. Air Supply Failure To Keep The Current Position; Torque range from 8Nm to 4678Nm |
| Single Acting | Air To Open, Interrupt Air To Close or Air Failure To Close; Torque range from 5Nm to 2792Nm |
| Air Supply Pressure | 2.5bar to 8bar |
| Rotation | 90° |
| Operating Temperature | -20℃ to 80℃ |
| Optional Accessory | Reversing Solenoid Valve, Limit Switch Box, Air Filter Reducing Valve, Positioner, Handle Manual, Lock Up Valve |
