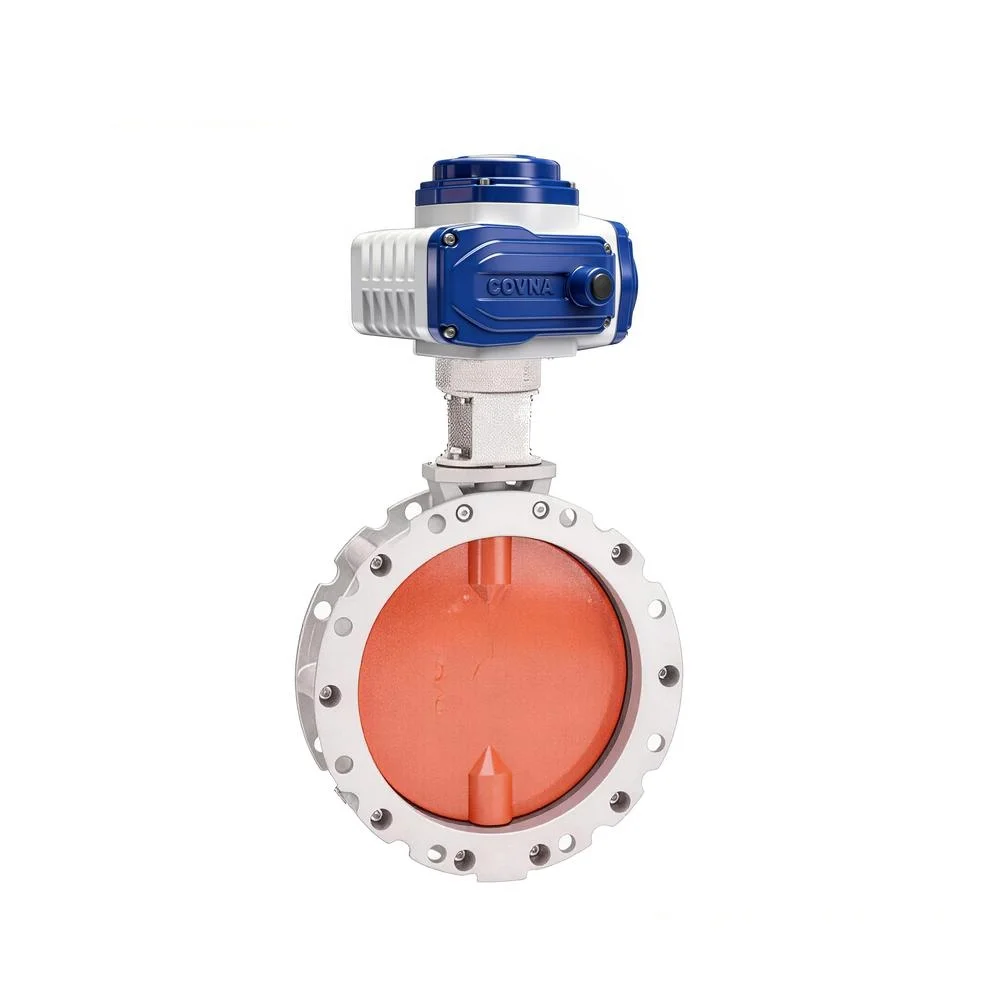

COVNA Powder/Cement Flange Electric Butterfly Valve
COVNA Electric butterfly valve is mainly used for powder material hopper and a switch box, powdery or granular materials is the silo. Can be applied to all powdery and granular materials, using gravity closure material valve and pneumatic transmission. Dry materials can be installed in the hopper bins, silos, below or other types of spiral conveyor, and connected with the pneumatic conveying pipeline. Because of the special structure of the valve and the use of engineering materials, it is always a very economical and efficient choice.
- Model: powder butterfly valve
- Size Range: 4"-16"
- Pressure Range: 0.4 (MPA)
- Material: Cast Aluminum Alloy
COVNA Electric Actuator Powder or Cement Butterfly Valve
- COVNA Electric powder butterfly valve by two by gravity casting into half body composition
- Half body Aluminum Alloy material, rotary valve plate is made of high polymer materials, has good sealing.
- The top and bottom flange of the same circle, with a top flange and a flange member for a the root of the flexible casing.
| Port size range | DN50-600 | Port Thread | flange |
| Structure | vertical plate | Applicable scope | concrete mixing station and dry powder |
| Body Material | Cast aluminum alloy | Medium Temperature | -20 ~ +90° C |
| Working Pressure | 0.4 (MPA) | Nominal diameter | 100-400 (mm) |
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistant, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 |
| Model | 05 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
