COVNA HK60-Q-2PS-F High Pressure 2 Way Flange Motorized Ball Valve
Two piece two way GB standard flanged fire safe approved ball valve, electric actuation. 316 stainless steel body, graphite filled PTFE seats, FKM backing ring, live loaded packing and anti static device. Firesafe approved API607 Sixth Edition. ISO5211 mounting pad allowing direct coupling of actuation. Great for fuel applications, pipelines, water treatment and general industry.
- Model: HK60-Q-2PS-F
- Size Range: 1/2'' to 8''
- Pressure Range: 1.6 to 6.4MPa
- Material: WCB, Stainless Steel
High Pressure 2 Way Flange Electric Motorized Ball Valve
- Features: Electric Motorized Ball Valve with auto-reset thermostatic protection in the motor
- Limit switch: Open/close limit switch with cams adjustable along the whole stroke
- Auxiliary limit switches with cams adjustable along the whole stroke
- Safety adjustable mechanical limit switches
- Detachable lever for manual operation
- ON-OFF Type: The Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA
- Regulation Type: Input & Output Signal: DC 4-20mA, DC 0-10V, DC 1-5V

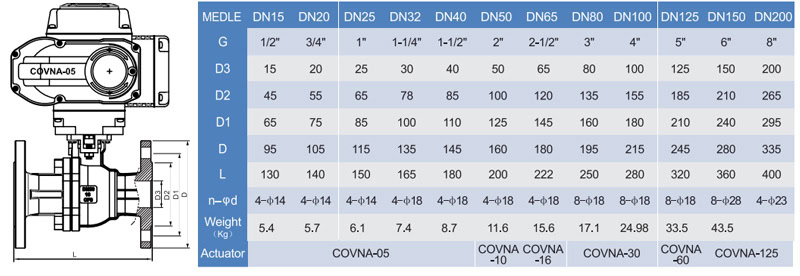

| Size Range | DN15-250 | End Connection | Flange |
| Body Material | Stainless Steel 304/316/316L | Working Pressure | 16 / 25 / 40 / 64 Bar (232 / 362 / 580 / 928 psi) |
| Temperature Of Media | -10 to 180℃ (-22℉to 356℉) | Suitable Media | Water, Air, Oil, Gas, etc |
| Structure | Floating Ball Valve | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Actuator Type | ON OFF Type, Modulating Type, Intelligent Type | Voltage Tolerance | ±10% |
● ON/OFF Type Electric Actuator: 90 degree rotation. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
● Modulating Type Electric Actuator: Adjust open/close angle from 0 to 90 degree. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
● Intelligent Type Electric Actuator: Adjust open/close angle from 0 to 90 degree. LED display screen to allow you check the open/close angle easier. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
| Model | C-05 | C-10 | C-16 | C-30 | C-60 | C-125 |
| Output Torque | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm |
| Cycle Time | 20s | 30s | 30s | 30s |60s | 100s |
| Rotation | 0-90° |
| Rated Current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A |
| Motor Power | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F |
| Weight | 3.0KG | 5.0KG | 5.5KG | 8.0KG | 8.5KG | 15.0KG |
| Voltage Options | AC110V/220V/380V, AC24V, DC24V |
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistant, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 |
COVNA aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service with omprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.
- 20 years manufacturer of actuated valves
- Mass customaztion acceptable. 3 production base, large stock,
- Short lead time, same day shipping.
- German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured.
- Industrial standard 1 ear (12 months) warranty.
- ISO 9001 certificated, with extra certifications include CE, TUV, RoHS, SGS, BV, explosion & fire safe.
- OEM / ODM service available. Can do JIS 5K / 10K, ANSI 150lb / 300lb / 600lb / 900lb standard.
