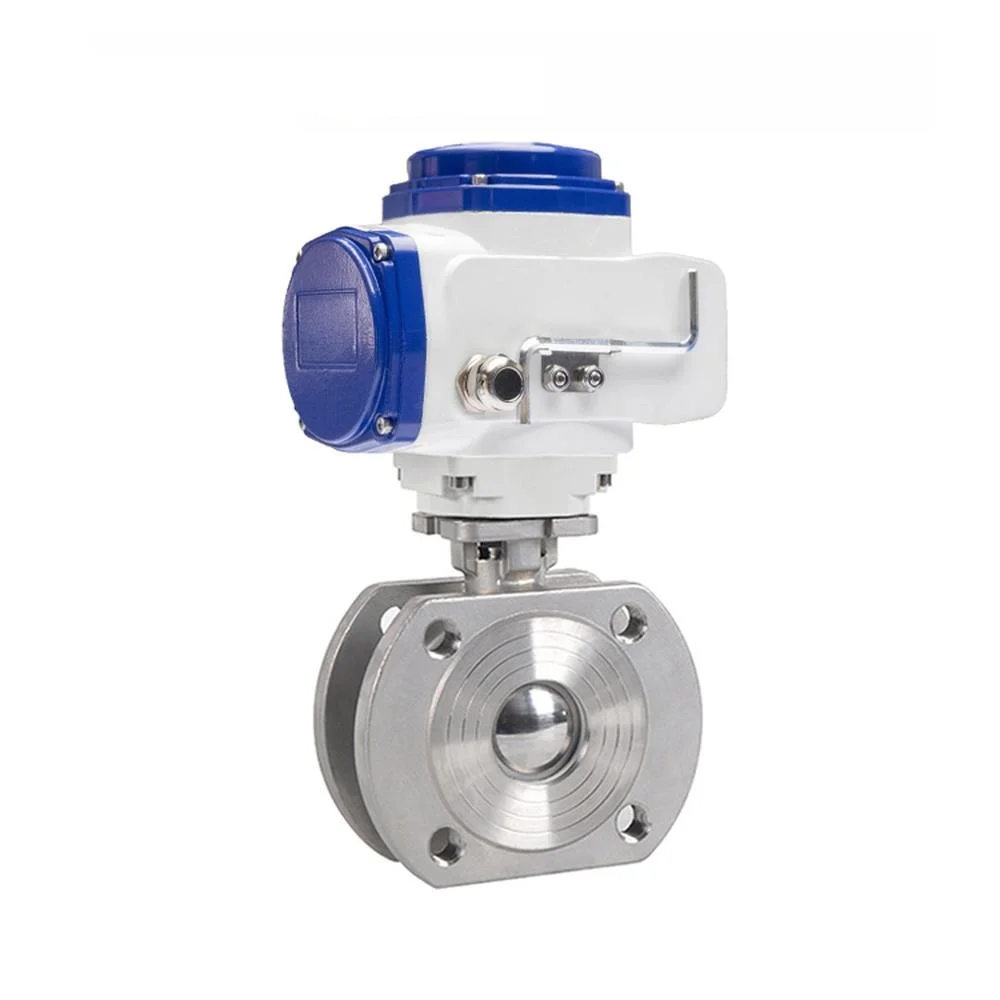

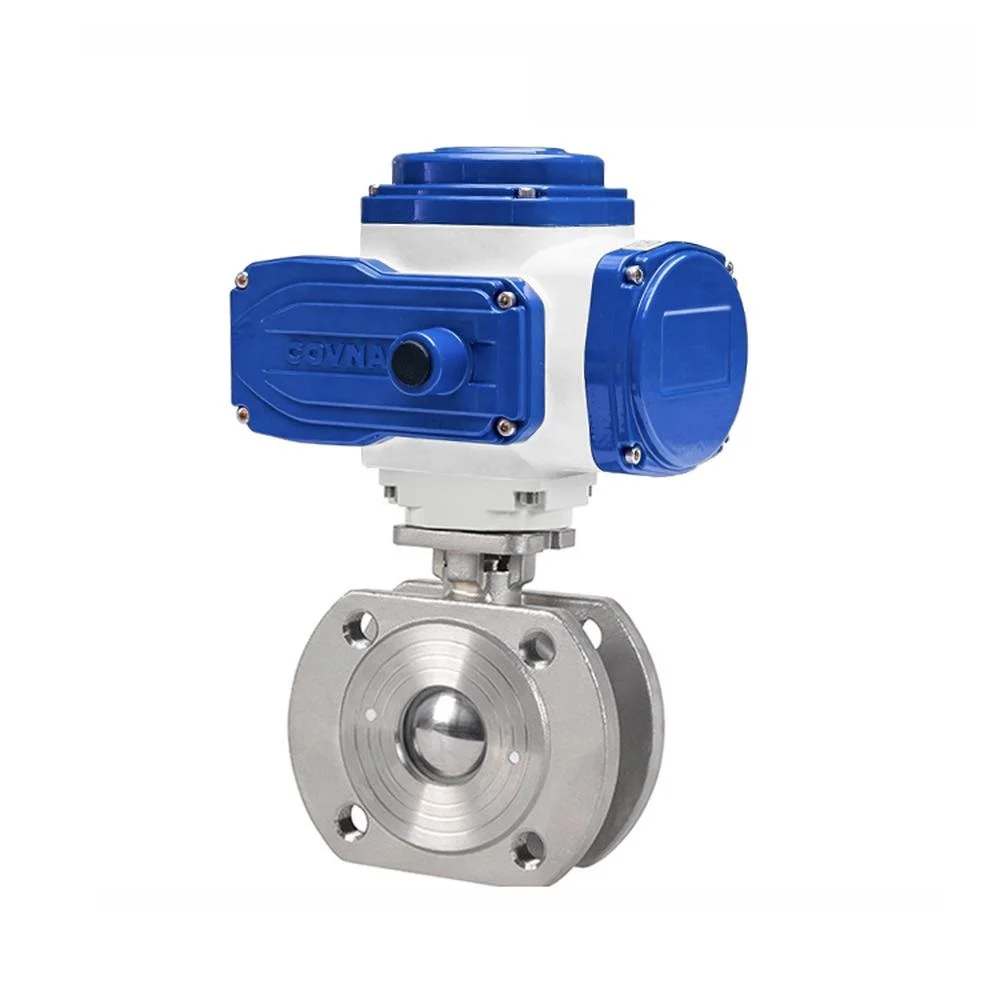

COVNA HK60-Q-B Flange Wafer Type Electric Actuated Ball Valve
Flange Ultra-thin ball valve with short length, light weight, easy installation, saving material and other significant advantages. In addition, the valve seat with elastic seal structure, reliable seal, open and close easily. With a fire-resistant structure, in case of fire can still operate reliably and have good sealing. According to user needs, can be equipped static structure positioning plate with hole be set according customer’s needs with lock to prevent mistakes
- Model: HK60-Q-B
- Size Range: 1/2'' to 6''
- Pressure Range: 1.6MPa to 6.4MPa
- Material: Stainless Steel
COVNA Thin Body WaferElectric Actuated Ball Valve
- This thin electric actuated ball valve is characterized by thin, light weight, easy install
- Wafer flange Ultra-thin ball valve is suitable for the pipe of Class 150, 1.0MPa-2.5MPa
- It can be soft seal or metal seal with compact structure, good sealing, easy operation
- It is widely used in paper making, petroleum, chemistry, metallurgy, air-condition, fire protection, water supply, and industrial automation
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: EX ll BT4 |
| Valve Body | Valve components | ||
| Nominal size | DN15-DN200 | Sealing material | PTFE: -20℃~180℃ |
| Body Material | Stainless Steel | Disc Material | Stainless Steel |
| End Connection | Flange | Stem Material | Stainless Steel |
| Operating Pressure | 1.6 / 2.5 / 4.0/ 6.4 MPa (10 / 16 / 20 / 64 bar) | Applicable media | Water, Air, Gas, Petroleum, Oil, Liquid |
| Structure | Floating ball core | Design standard | GB, ASMI |
