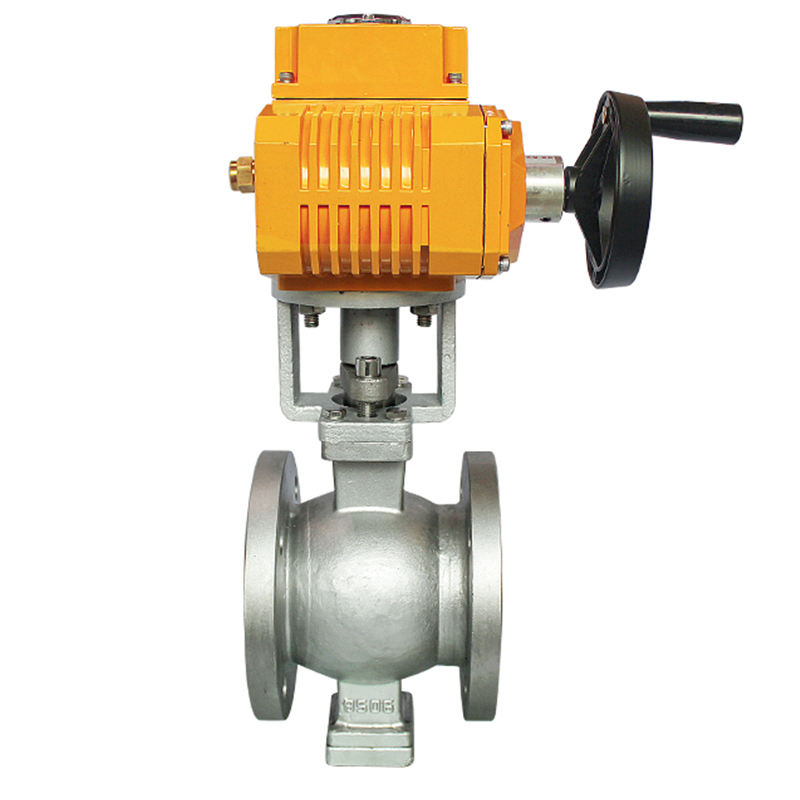

QT 2 Way Explosion Proof Electric Actuator V Type Ball Valve Flange
- 1. Our multi-function v-type ball valve is a new type of valve, which can play a good control effect in both cutting and adjusting conditions.It can not only replace the regulating valve, but also cut off the effect of zero leakage.
- 2. The ball core has v-notch structure, which can shear the medium.
- 3. QT Series Electric Actuator is used to control valves with 00-270′ rotation andother similar products, such as butterfly valves, ball valves, air throttles, bafflevalves, plug valves and shutter valves.
- 4. It is widely used to control the process parameters in suspension medium containing fiber or small solid particles in papermaking, chemical industry, metallurgy and other industrial enterprises.
- Model: QT-Ex-actuator valve
- Size Range: 1/2'' to 10''
- Pressure Range: ANSI 150LB
- Material: WCB 304, 316
ANSI150LB Explosion proof Electric Actuator with hand wheel
- Features: Electric Motorized Ball Valve with auto-reset thermostatic protection in the motor
- Manual structure: the handwheel design ensures its safety , reliability, labor saving and small size.
- When it’s not energized, pull the clutch handle for manual operation. When it’senergized , the clutch will be reset automatically. ( Note : when the motor is notenergized , the electric actuator will maintain a permanent manual state)
- Driven by380V / 220V / 110V AC power and controlled with 4-20MA current signals or 0-10V DC voltage signalsit can make the valve move to the required position for automatic control.
- The maximum output torque is up to 2 , 000NM.
- The producthas been certified by explosion-proof certification, with guaranteed quality
