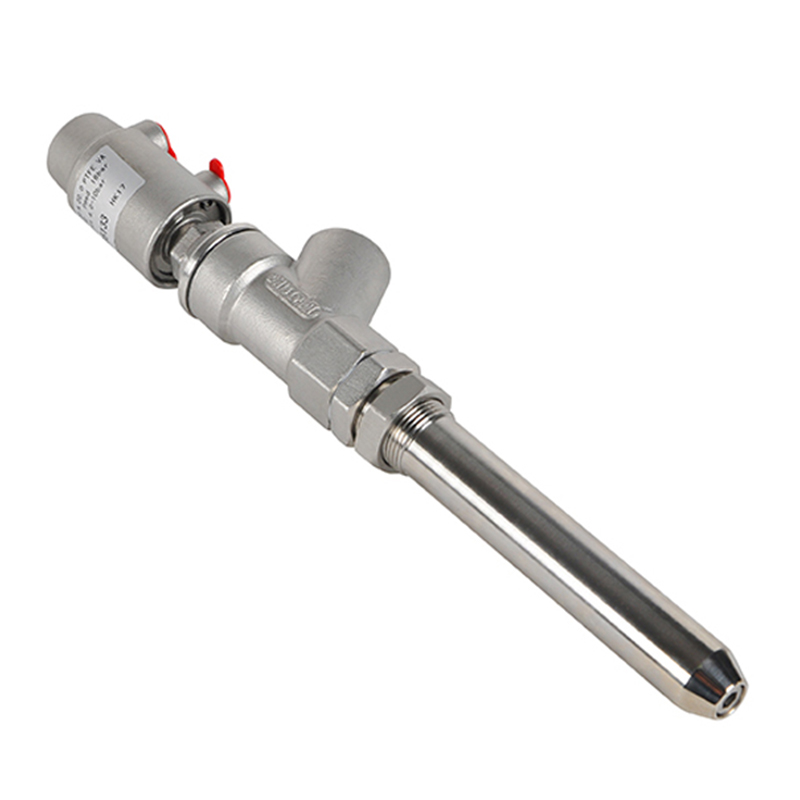

Stainless Steel 1/2” Sanitary Pneumatic Nozzle Air Filling Valve
This air filling valve is widely used in drinks filling machinery. The long filling gun is specially designed for high viscosity fluid. Fast filing accurate and steady performance. Compact design could be assembled in a small space. No dripping during working because of special sealing design. Widely application in food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries
- Model: HK17G
- Size Range: 1/2''
- Pressure Range: 0~1.6MPa
- Material: Stainless Steel
Product Feature:
- Fast filling accurate and steady performance
- Specially designed for high viscosity fluid
- Could be assembled in a small space
- No dripping during working
- Length is available to custom
- Offer various international standard, ANSI, JIS, DIN, etc
- OEM service to help customers to promote their brands
| Body material | Stainless Steel | Seal Material | PTFE |
| Armature Tube | Stainless Steel304 | Medium | Air, water, steam, oil, etc |
| Spring Acting | Fluid pressure: 0-7bar; control pressure: 3.8bar-4.2bar | Double Acting | Fluid pressure: 0-7bar; control pressure: 3bar-3.5bar |
| Pressure | 0~1.6MPa | Port Size | 1/2” |
| Temperature |
Fluid temperature: -10℃~+120℃; | Voltage |
DC-12V, 24V; AC-24V, 110V, 120V, 220V, 240V |
| Ambient temperature: -20℃~+60℃ |
