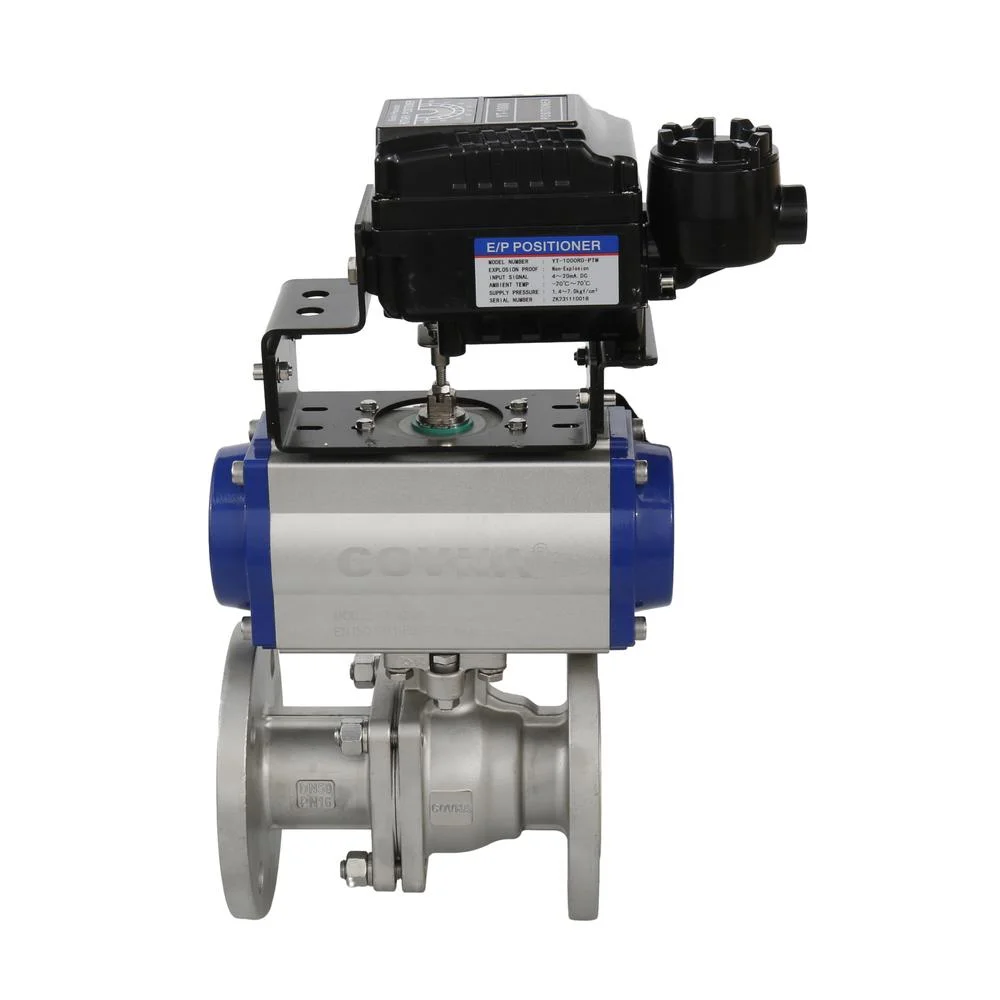

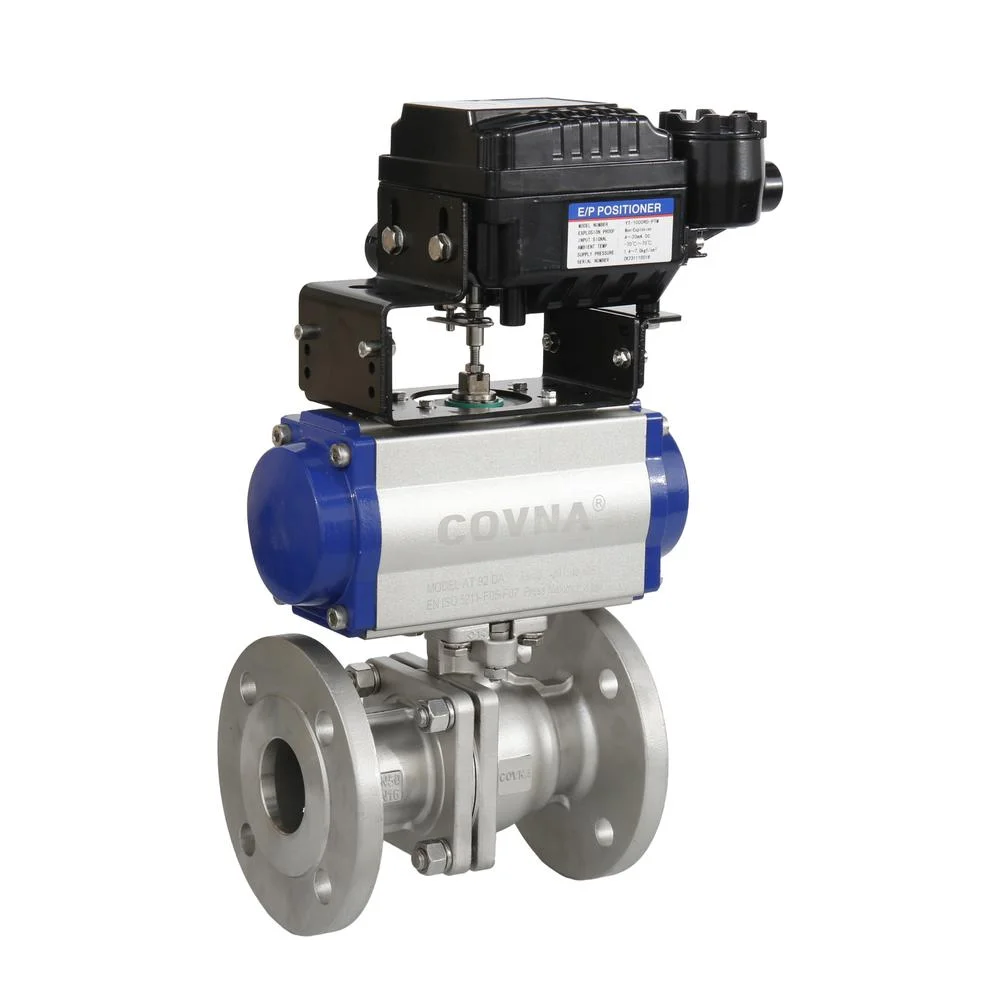

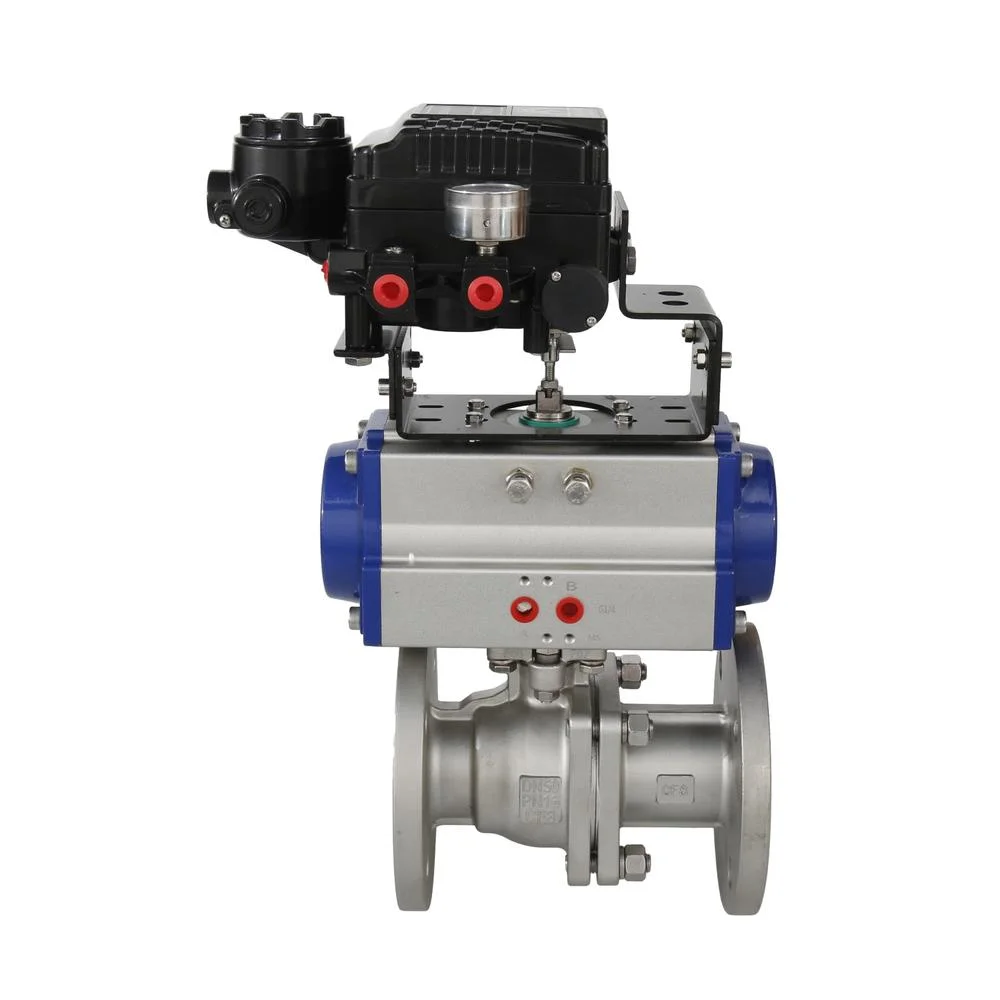

COVNA Stainless Steel Pneumatic Operated Ball Valve with F.R.L Unit
316 S.S 2 way flange ball valve, pneumatic actuation.15mm bore, PTFE seat, FKM seals, F03/F04 ISO mounting pad.
Vacuum to 68bar pressure range, media temp -20°C to 180°C. Live loaded packing.
Typical applications include water treatment, chemical industry, marine, petrochemical and light industry, metallurgy, power station.
it can automatically adjust or cut off the oil, water, gas, pulp or fibrous fluid
- Model: HK55-F
- Size Range: 1/2" to 8"
- Pressure Range: 1.6MPa to 6.4MPa
- Material: Stainless Steel
Wafer Type Short Thin Ball Valve with pneumatic actuator
- Long service life, eco-friendly, easy installation, steady maintenance, etc
- It has a safe and durable operation, and has a good sealing performance
| Double acting | Air to open, air to close, air supplier failure to keep the current position |
| Single acting N/C | Air to open, interrupt air to close, air failure to close |
| Single acting N/O | Air to close, interrupt air to open, air failure to open |
| Optional accessory | Reversing solenoid valve, limit switch box, air filter reducing valve, positioner, handle manual, lock up valve. |
|
Model
|
HK55-F
|
Acting Mode
|
Double Acting
|
|
MOQ
|
1 Set
|
Air Supply Pressure
|
2.5 to 8bar
|
|
Applicable Standard
|
GB
|
No. of Ways
|
2 Way
|
|
Port Size
|
1/2 inch
|
End Connection
|
Flange
|
|
Operating Pressure
|
1.6MPa to 6.4MPa |
Media
|
Water, Oil, Gas, Air
|
|
Body Material
|
Stainless Steel
|
Temp. of Media
|
-10°C to 180°C
|
|
Valve Ball
|
Stainless Steel
|
Certification
|
ISO 9001, CE, TUV, SGS
|
|
Sealing Material
|
PTFE
|
Warranty
|
1 Year (12 Months)
|
Packing details: each valve will be packed with foam in carton or in pallet to keep it safe during shipment.
Shipping method: we offer a variety of fast shipping methods, including DHL, Fedex, TNT, UPS, EMS, Airway, etc.
Delivery time: within 15 working days after payment due, stocking items same-day shipping.
